ARDUCAM NANO RPI MODULE

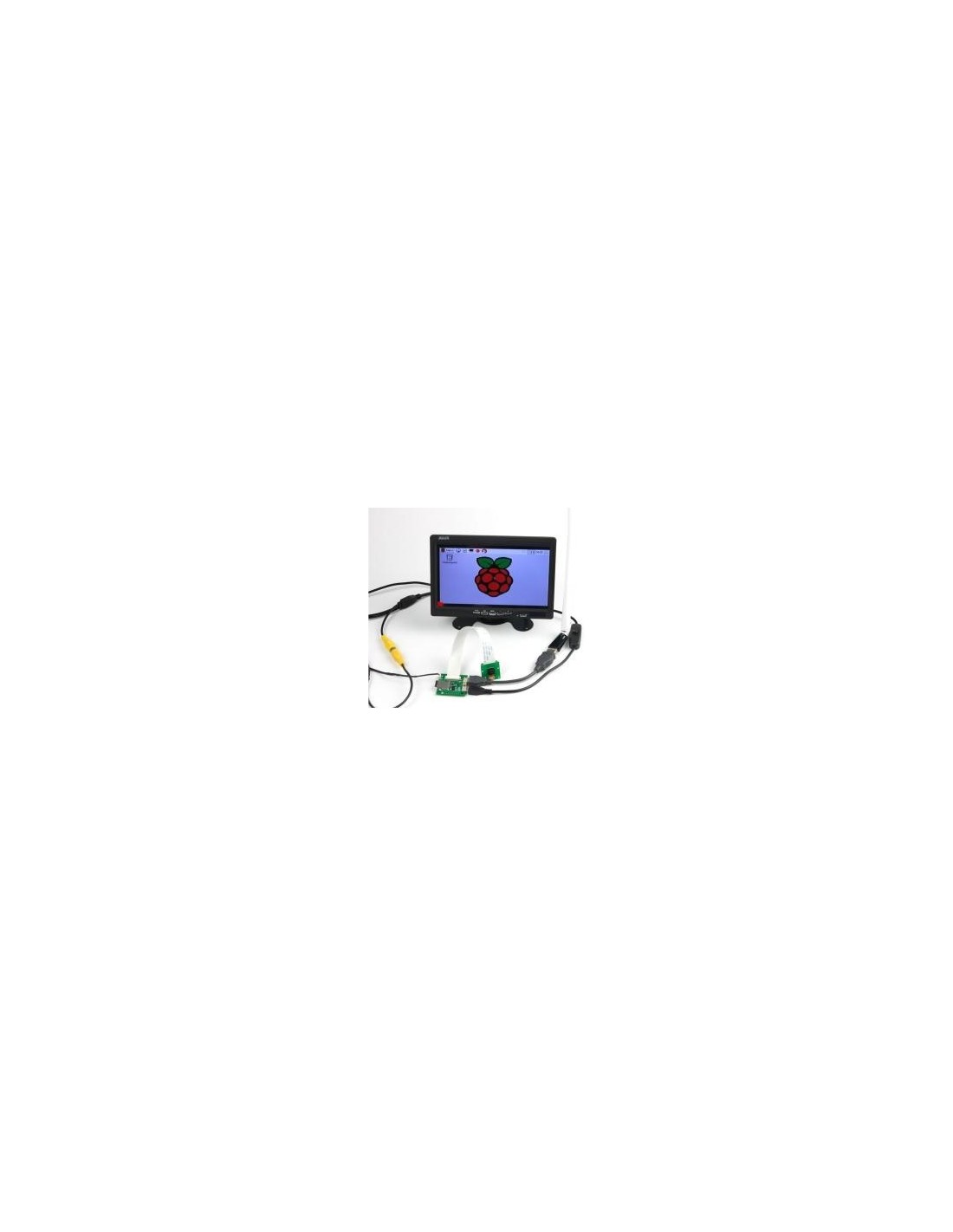

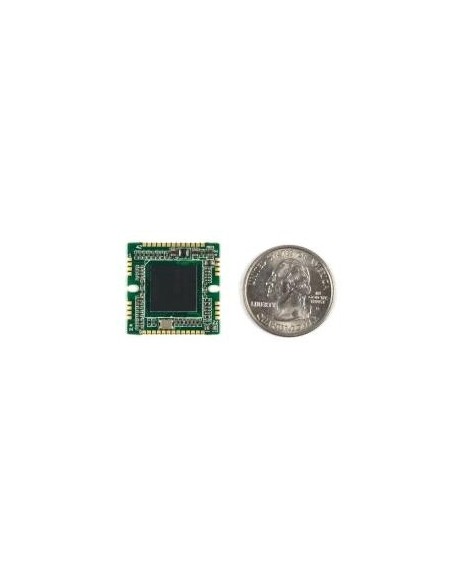

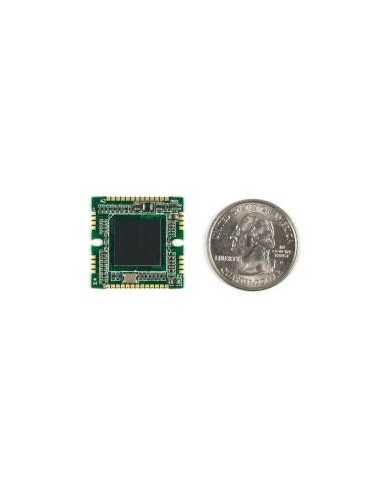

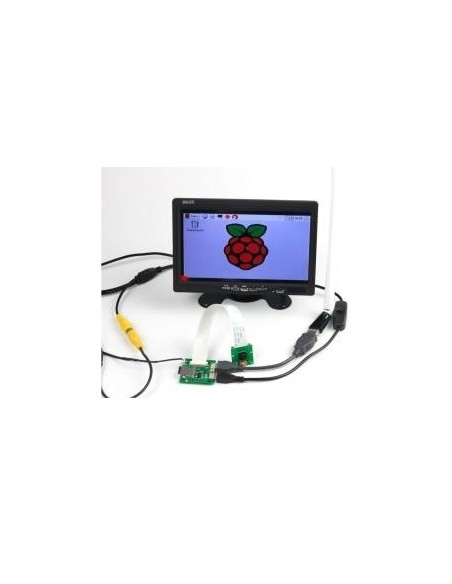

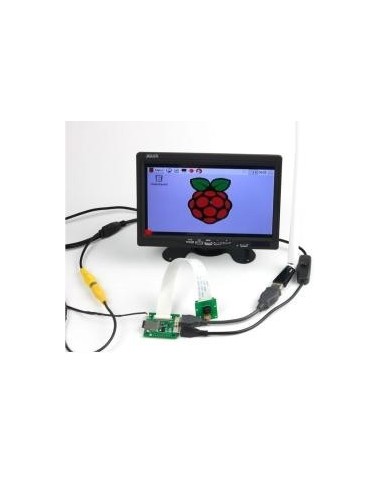

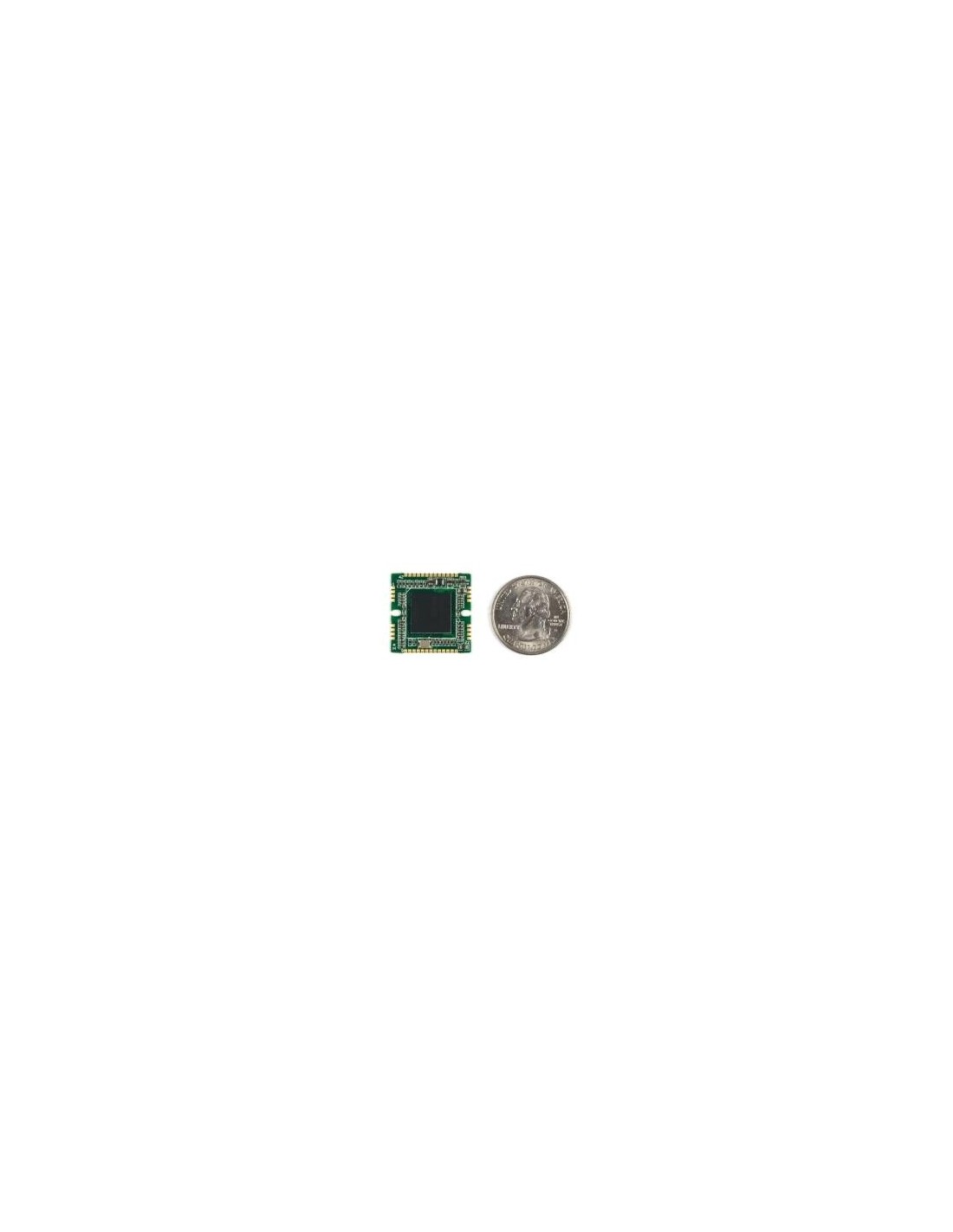

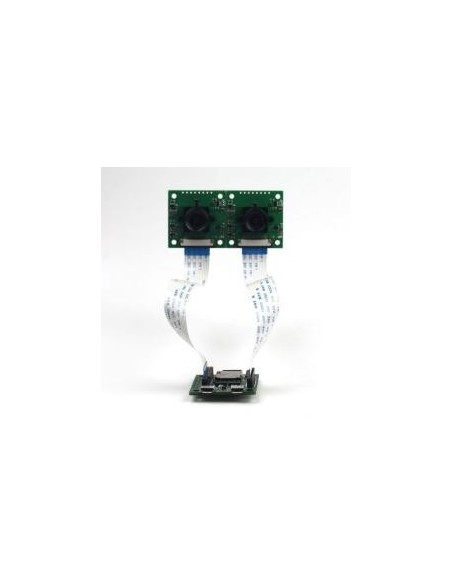

ArduCAM Nano RPI module is 24x24mm coin size Raspberry Pi compute module which is designed for the applications where the size and weight is a matter. The board is based on Broadcom BCM2835 processor which has 600MHz ARM1176JZ-K and VideoCore IV GPU inside. The Nano RPI has rich peripherals including two CSI camera interface, PAL video output,SPI, I2C, UART, GPIO and etc. Together with its mother board, it can be a quick prototype dual camera system



Features:

• Processor: 600Mhz BCM2835 ARM1176JZ-K with VideoCore IV
• Memory: 512MByte DDR2
• Dual CSI-2 interface
• SDTV: PAL output
• Peripherals: USB,SPI, I2C, UART, GPIO
• Power input: micro-USB or Battery

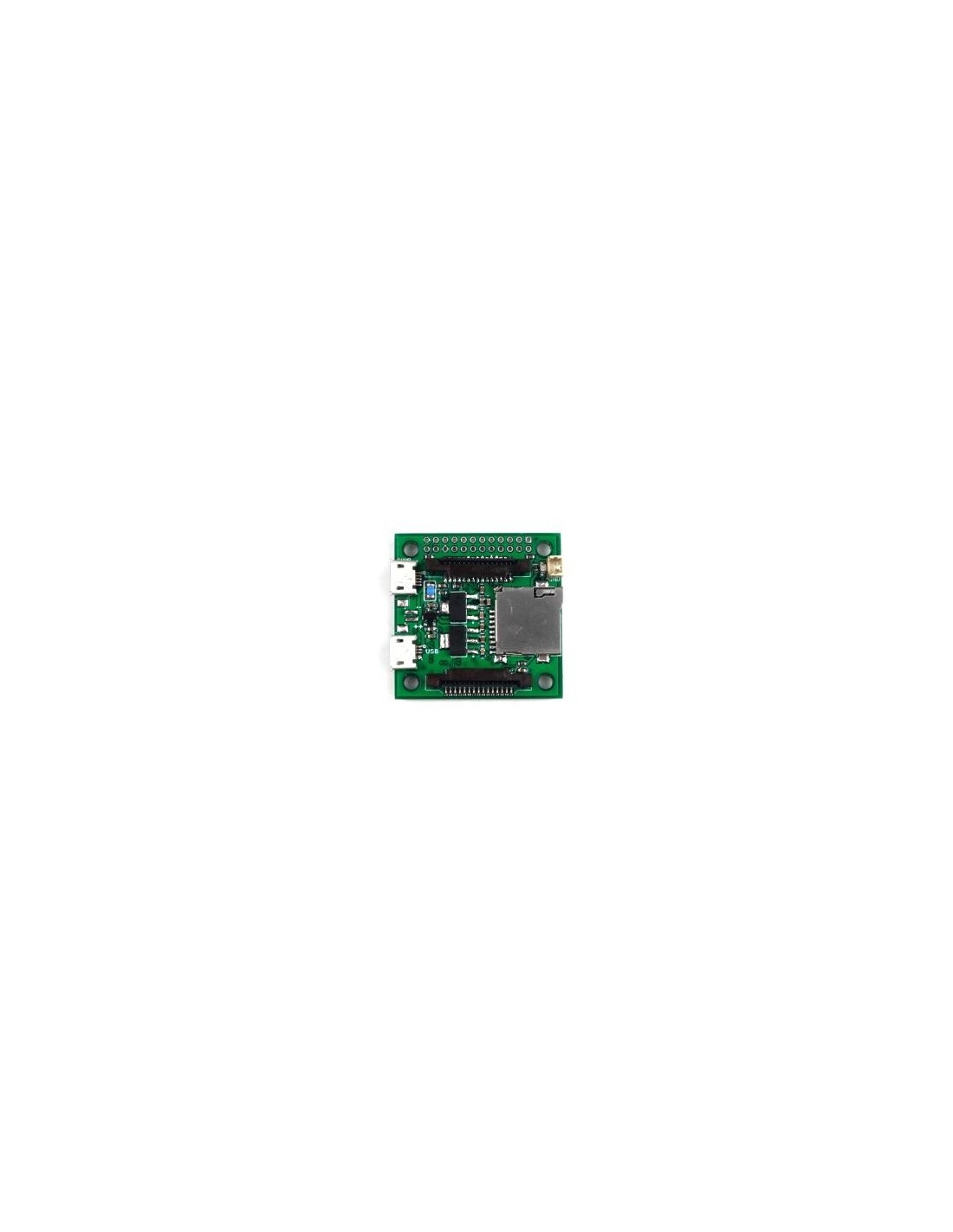

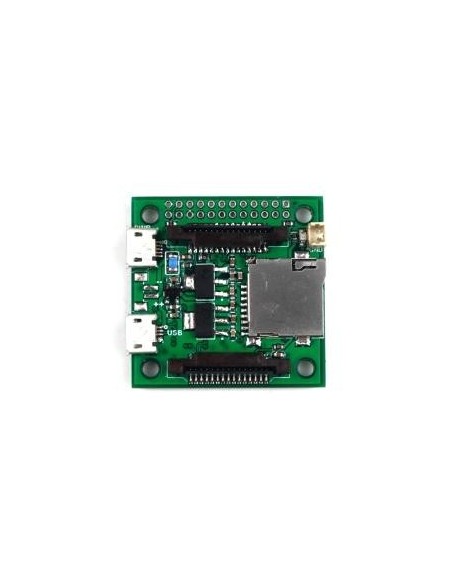

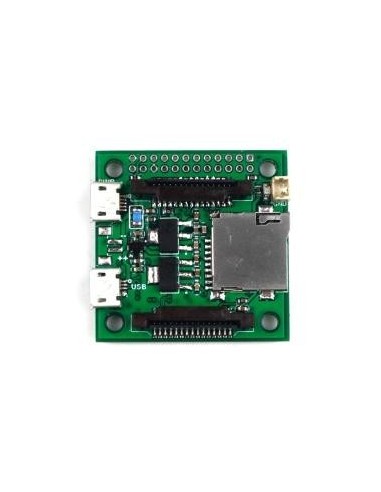

• Small form of factor, mother board is 36x36mm



Application:

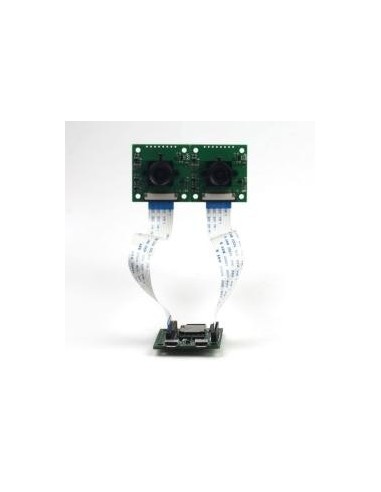

• stereo camera
• Robot controller
• UAV controller
• smart watch
• Other battery-powered products

Key Specifications:

• Power supply
• microUSB :5V
• Battery: 3.7V
• CPU speed: 600MHz
• Memory : 512MB DDR2
• 30fps 1080p H.264 video encode/decode
• Nano RPI Size: 24 x 24 mm
• Mother board size: 36 x 36mm
• Temperature: -25?~+85?
• Weight: 10g
