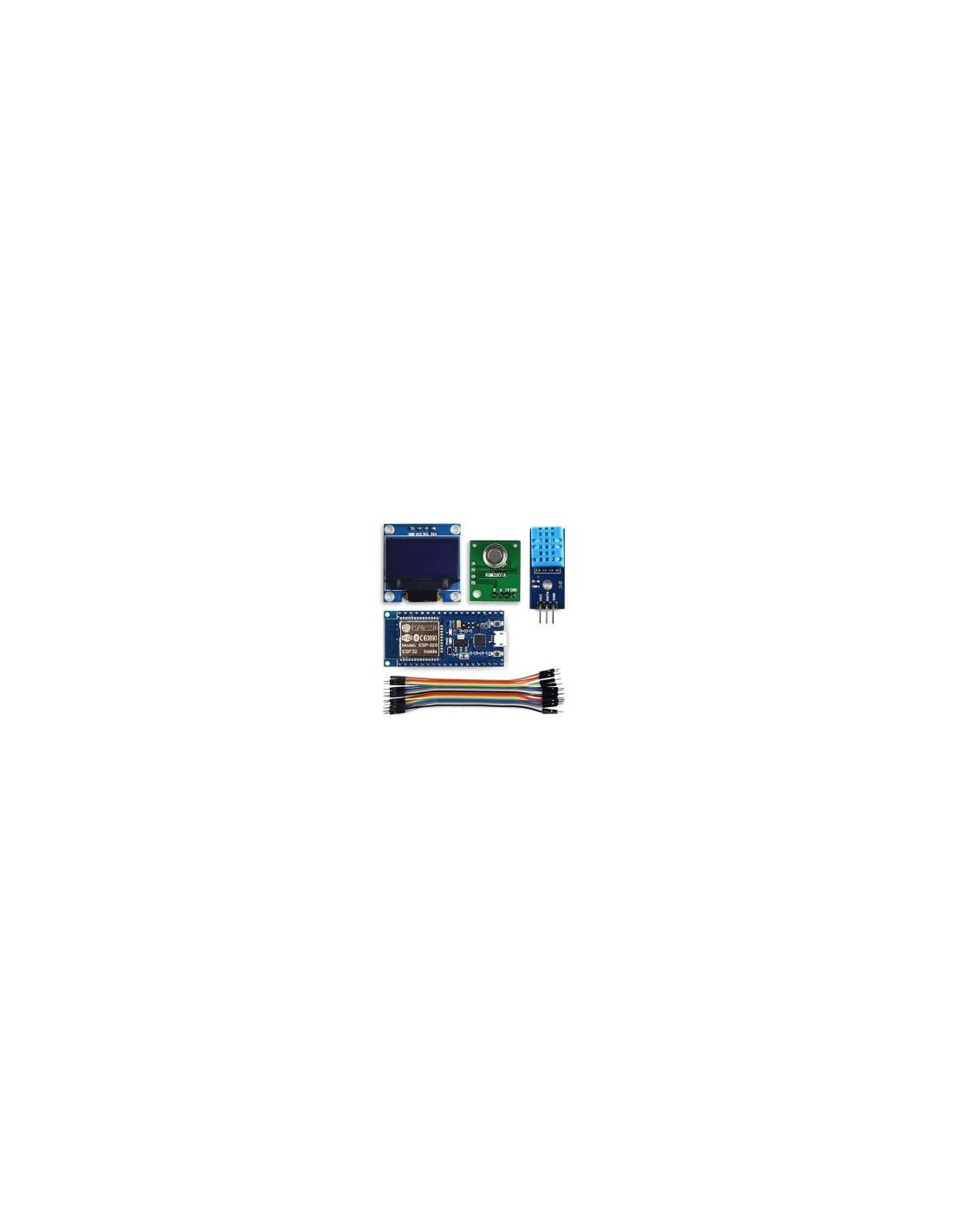

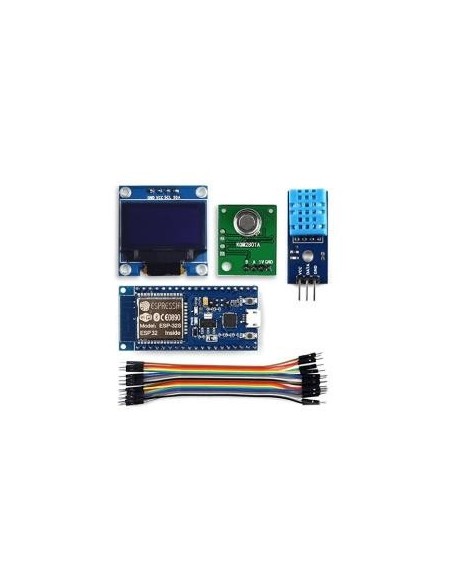

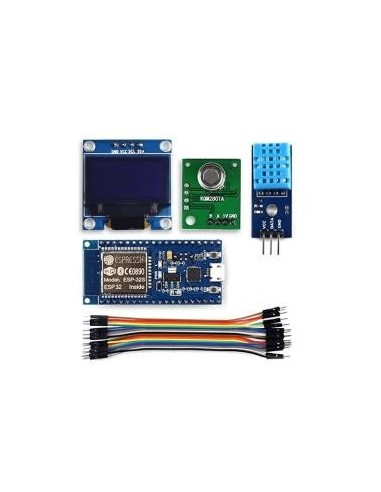

ESP8266 KIT METEO

ESP8266 ESP-12E Development Board

• 802.11 b/g/n protocol
• Wi-Fi Direct (P2P), soft-AP
• Integrated TCP/IP protocol stack
• Integrated TR switch, balun, LNA, power amplifier and matching network
• Integrated PLL, regulators, and power management units
• +19.5dBm output power in 802.11b mode
• Integrated temperature sensor
• Supports antenna diversity
• Power down leakage current of < 10uA
• Integrated low power 32-bit CPU could be used as application processor
• SDIO 2.0, SPI, UART
• STBC, 1x1 MIMO, 2x1 MIMO
• A-MPDU & A-MSDU aggregation & 0.4 s guard interval
• Wake up and transmit packets in < 2ms
• Standby power consumption of < 1.0mW (DTIM3)

• Size: 0.96''
• Resolution: 128X64
• Supported platforms: for Arduino, ESP series, 51 series, MSP430 series, STIM32 / 2, SCR chips
• Driver IC: SSD1306
• Communication: IIC
• VCC: 3.3~5V
• GND: Ground
• SCL: Serial Clock
• SDA: Serial Data

• Digital signal output
• VCC: 3.3V~5V
• GND: Ground
• DATA: MCU IO port
• Tips: Do not reverse the VCC and GND, otherwise it will burn!
