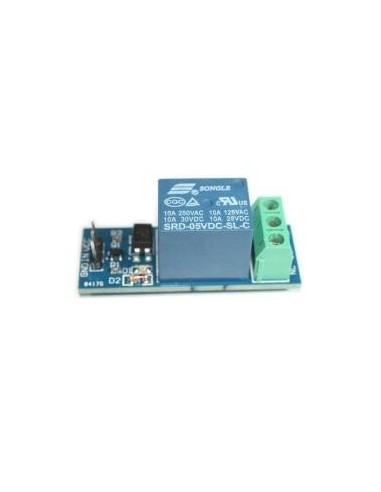

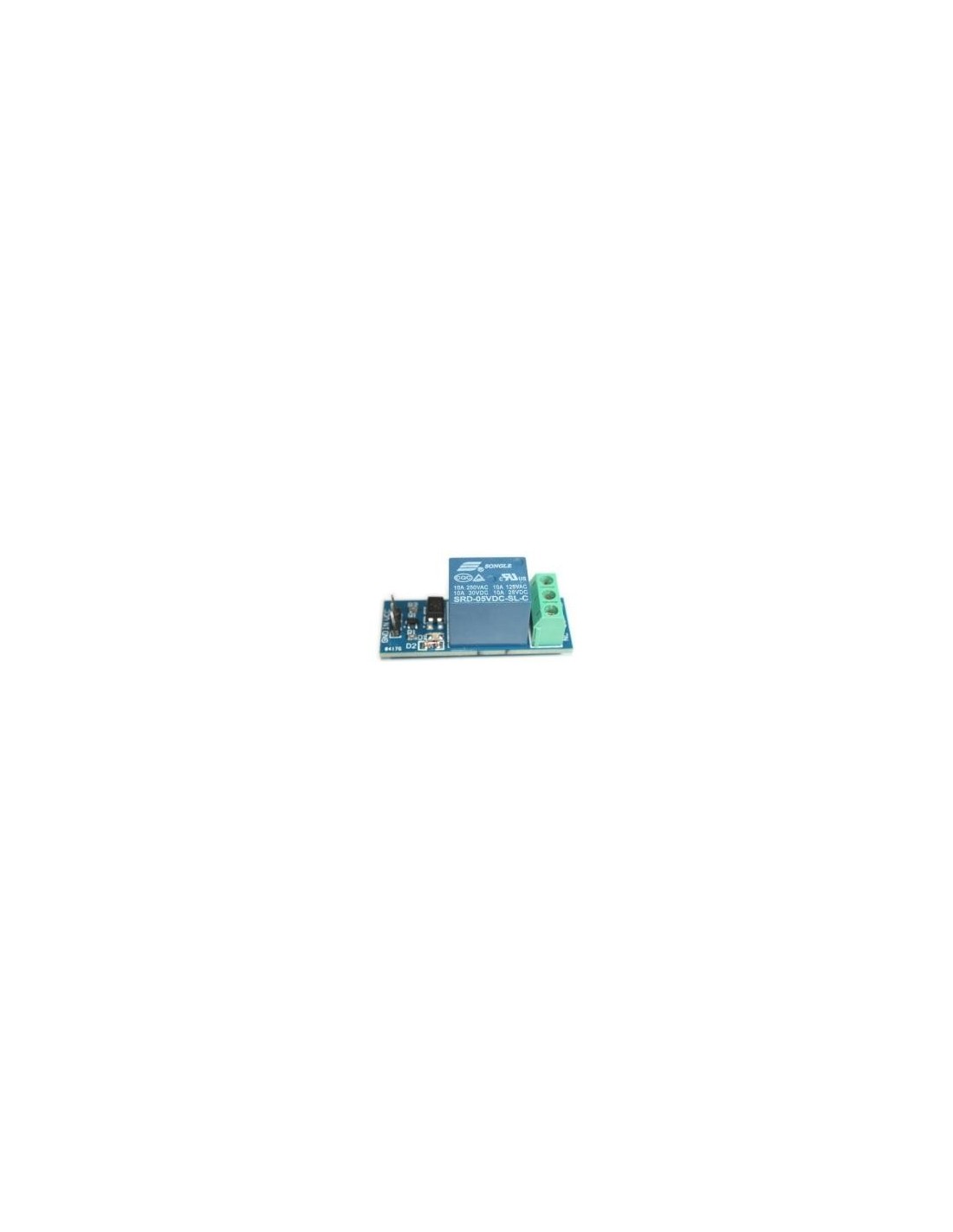

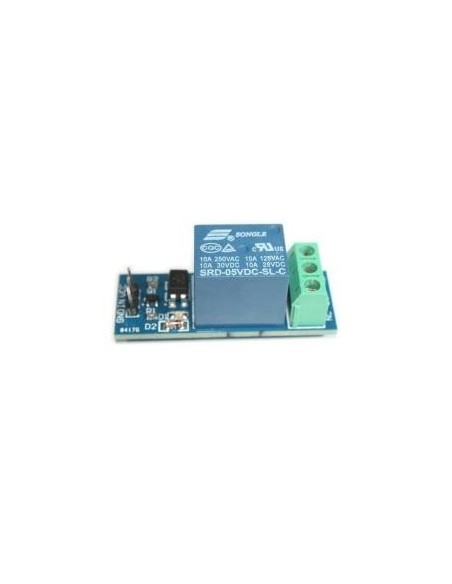

MODULO RELE ARDUINO 5V 1CH 10A

The module is uses SRD relay module to control high-votage elecrical devices. (maximum 250V).It can be used in interactive projects and can also be used to control the lighting, electrical and other equipments.It can be controlled directly by a wide range of microcontrollers and can be controlled through the digital IO port, such as solenoid valves, lamps, motors and other high current or high voltage devices.

Specification

• Number of I/O Channels: 1
• Type: Digital
• Switching capacity available by 10A in spite of small size design for highdensity P.C. board mounting technique.
• Control signal: TTL level
• Max. Allowable Voltage: 250VAC/110VDC
• Max. Allowable Power Force: From C(800VAC/240W), From A(1200VA/300W)
• UL,CUL,TUV recognized.
• Indication LED for Relay's Status
