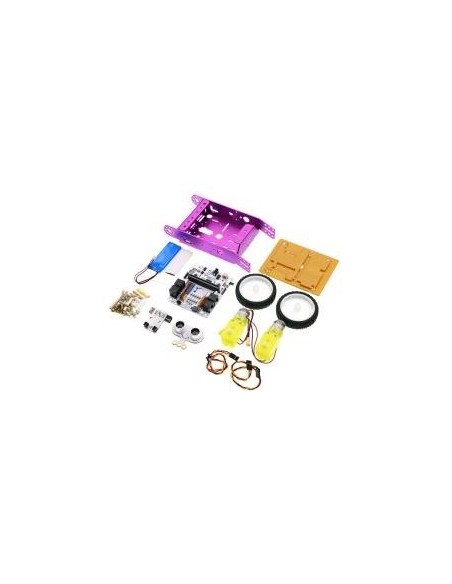

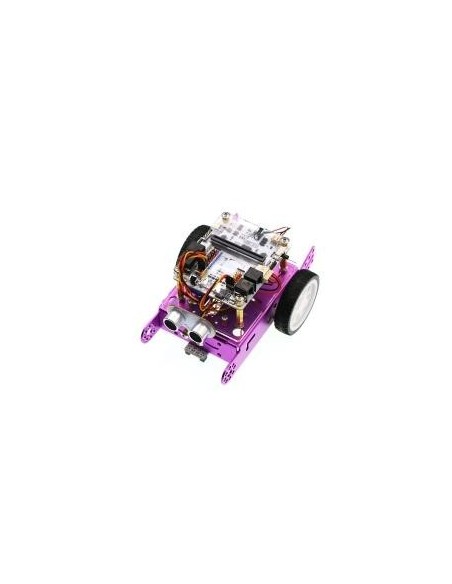

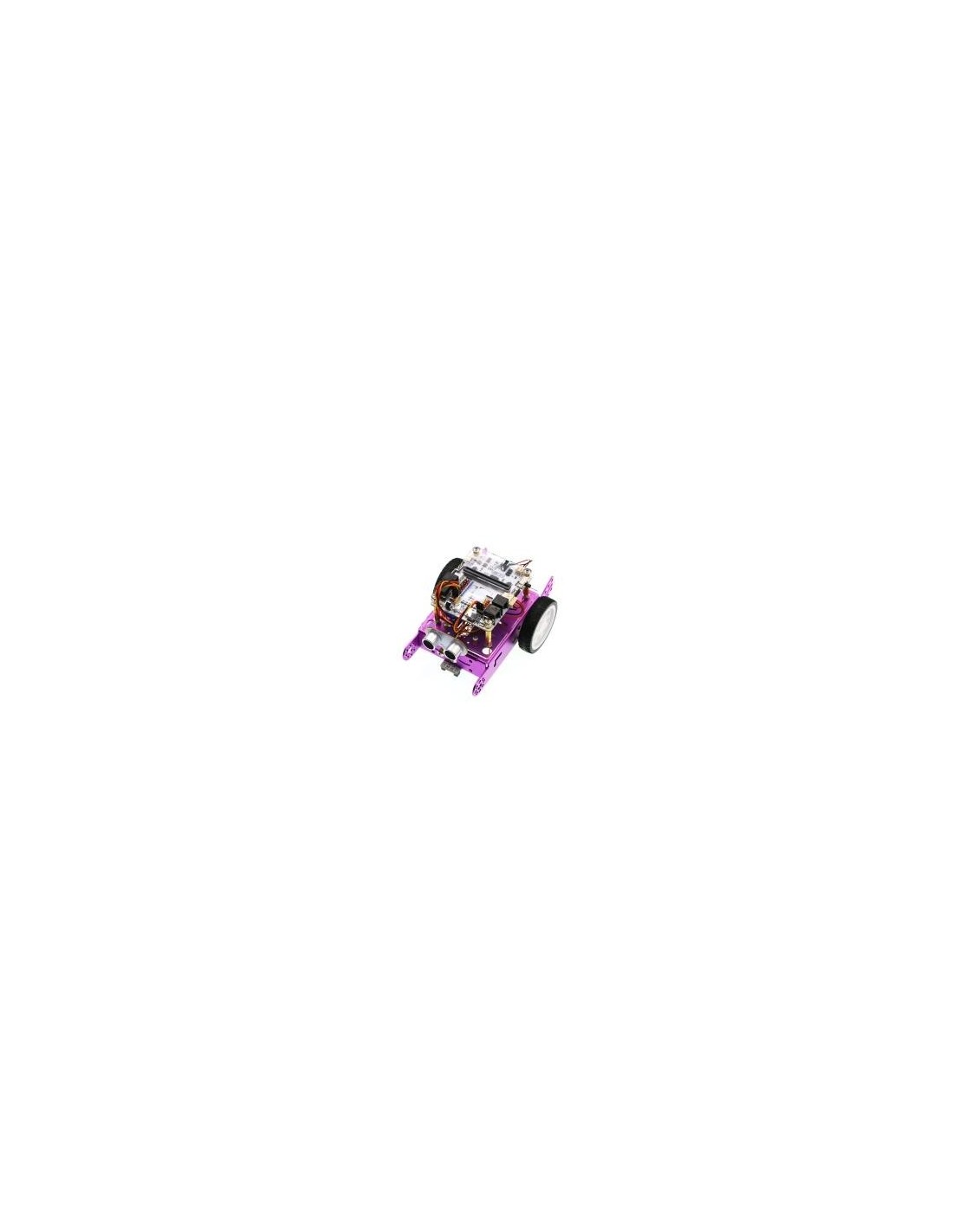

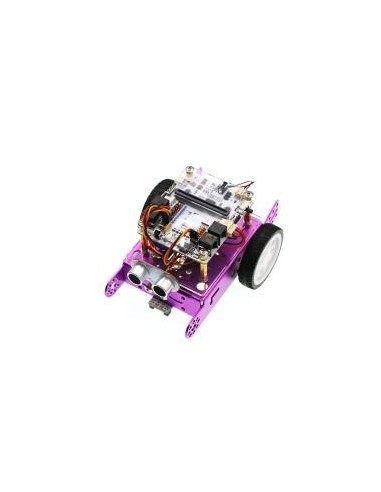

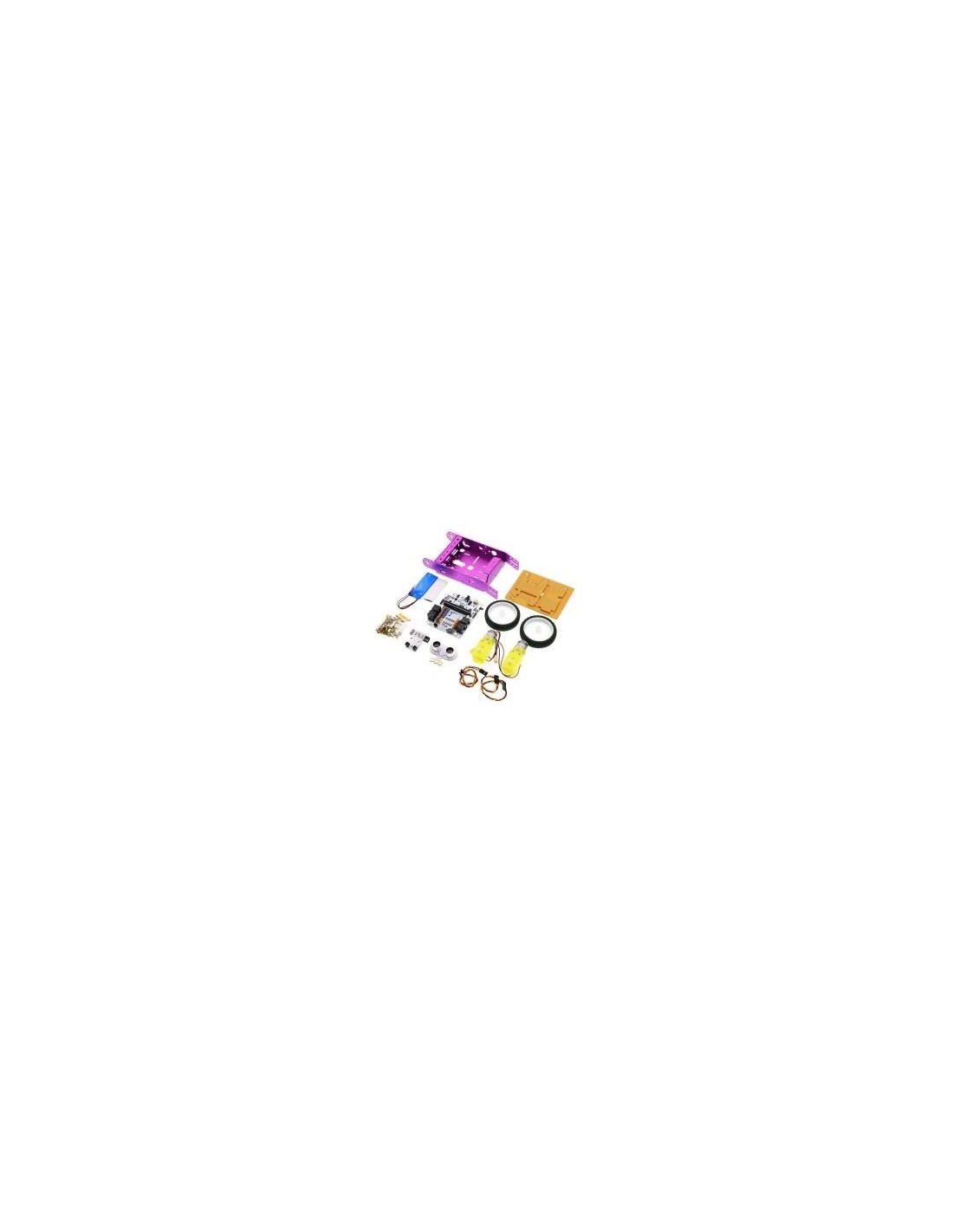

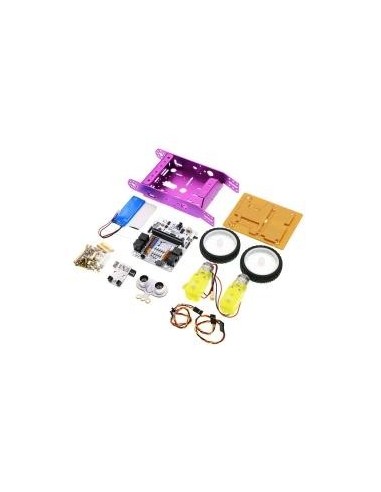

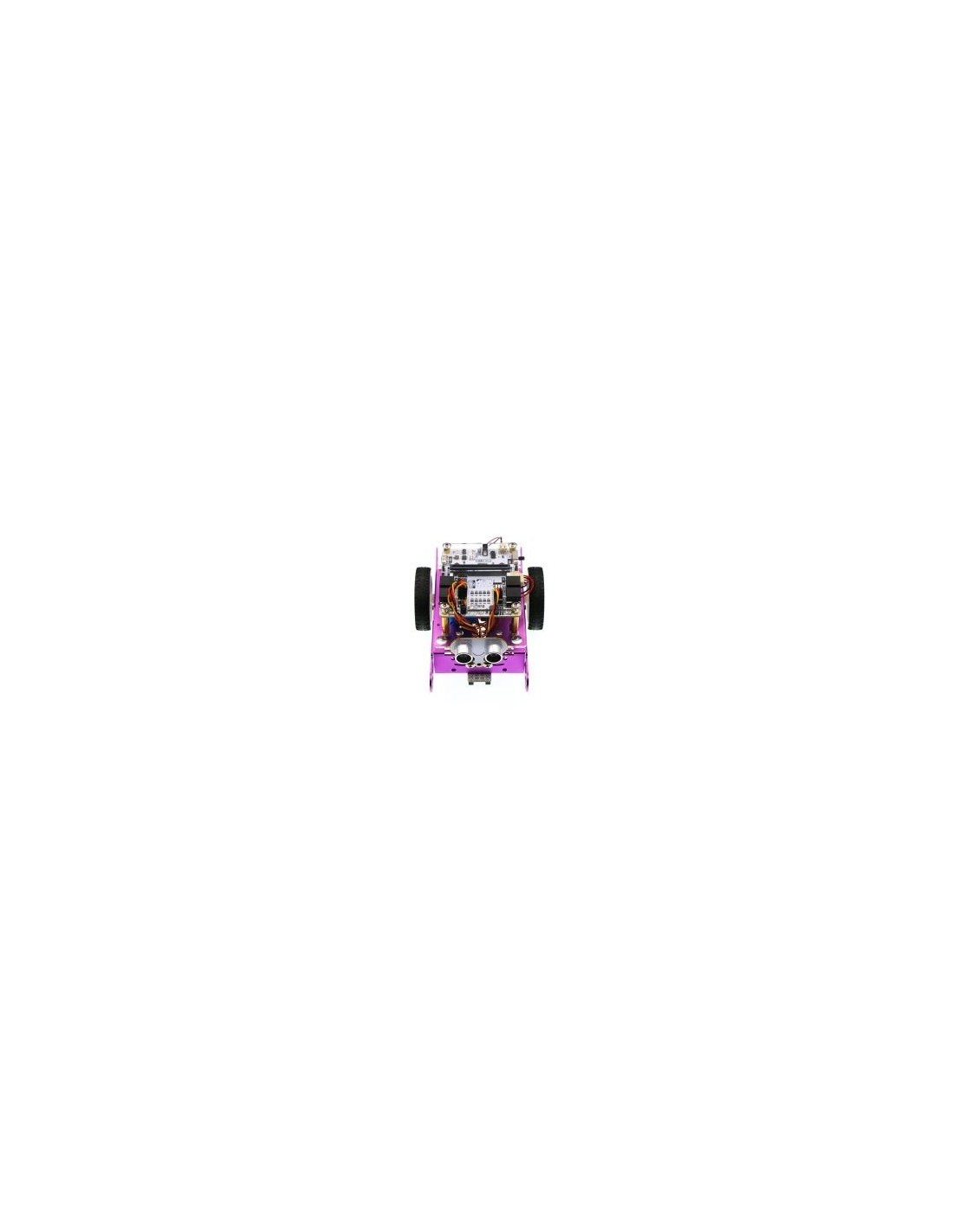

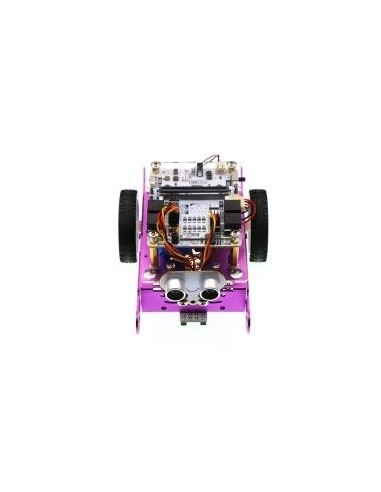

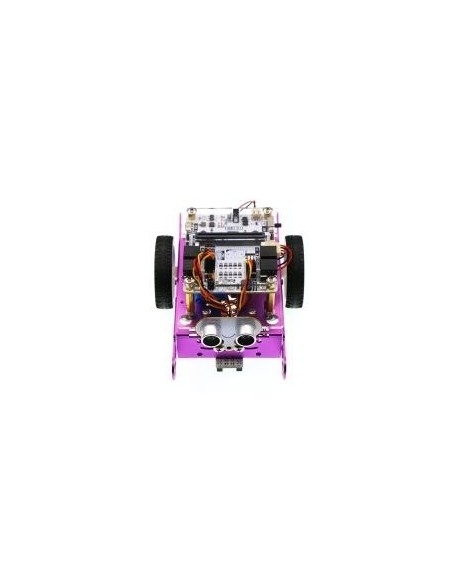

micro:bit robit smart car(Placa micro:bit no incluida)

Introduction

Robit smart car is a kind of smart car which is based on micro:bit and ElecFreaks robit. Besides the RJ25 wiring port and motor port in Mbot, the robit is also equipped with 2-way DC motor connectors , 2-way stepping motor connectors(Stepping motor connectors and 4-way DC motor connectors are multiplexed ) and 8-way PWM signal output connectors. It can drive PWM signal driving devices like servo. It has 8-way G-5V-S digital signal connectors(for connecting with OCTOPUS electric bricks) and 4-way G-5V-S analog signal connectors(for connecting with OCTOPUS electric bricks). Robit can realize all current basic functions of MBOT and it can be regarded as the new generation of Mbot.

Characteristics

• Support 4 channels of DC motor and 2 channels of stepping motors.

• With 8-way PWM signal output connectors.

• With 8-way G-5V-S digital signal connectors(for OCTOPUS electric brick).

• With 4-way G-5V-S analog signal connectors(for OCTOPUS electric brick).

• DC power supply input voltage: DC 3.7V-6V.

• Lithium battery power supply input voltage: DC 3.7-4.2V.
