Item Description:

In order to meet the increasing need of compact HDMI displays, especially for some popular single-board computers like the Raspberry Pi, the UCTRONICS team now releases a 5-inch HDMI LCD display with capacitive multi-touch touchscreen

GitHub Link For Software Package : https://github.com/UCTRONICS/UCTRONICS_HDMI_CTS

Features:

• 800 x 480 physical resolution, support up to 1920 x 1080 input and auto scaling
• Plug&play capacitive touch controller USB driver
• 5 points Multi-Touch capability

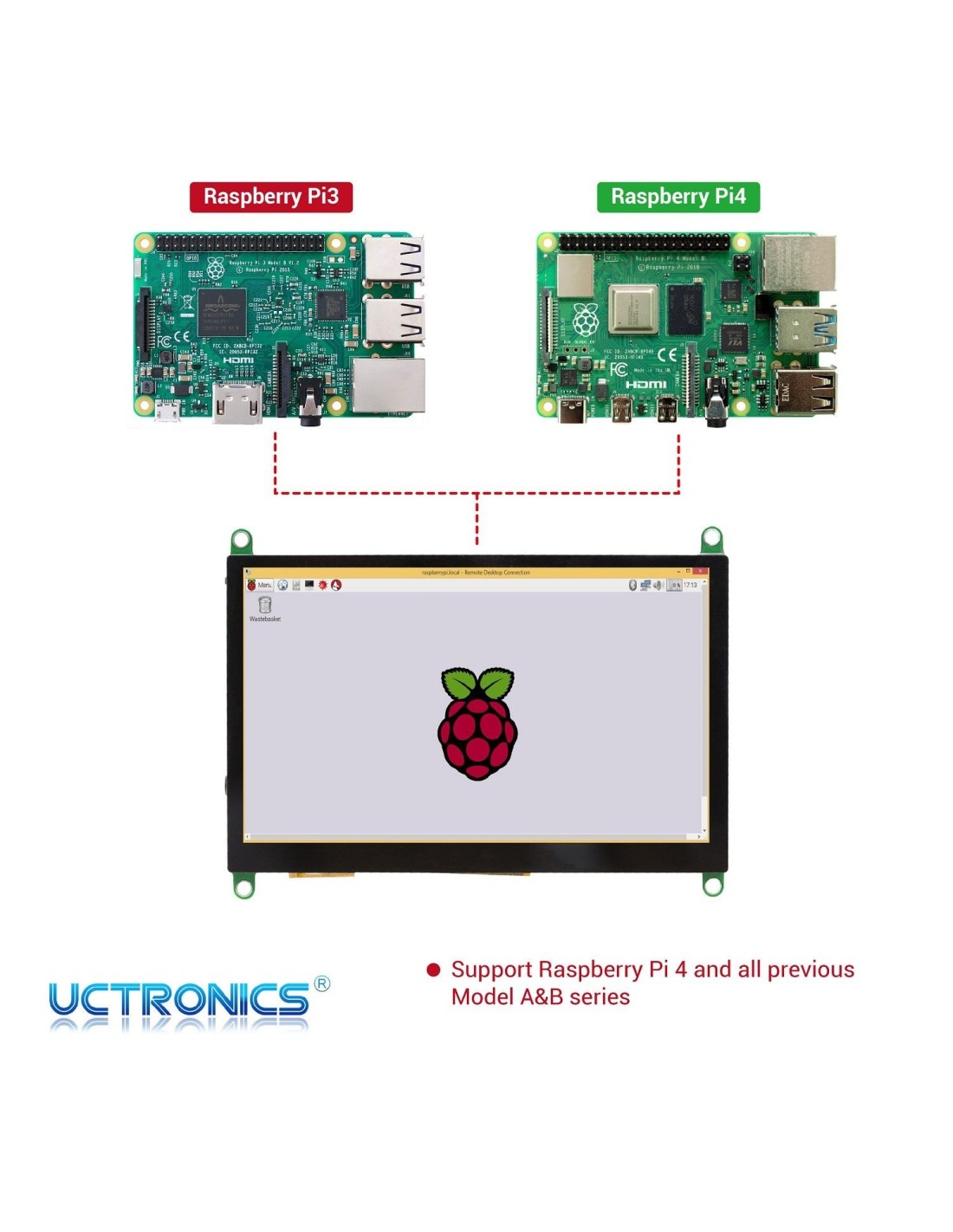

• Compatible with Raspberry Pi 4B/3B+/3B and all other Model A&B series.
• Work as a general-purpose compact touchscreen monitor with USB enabled touch controller

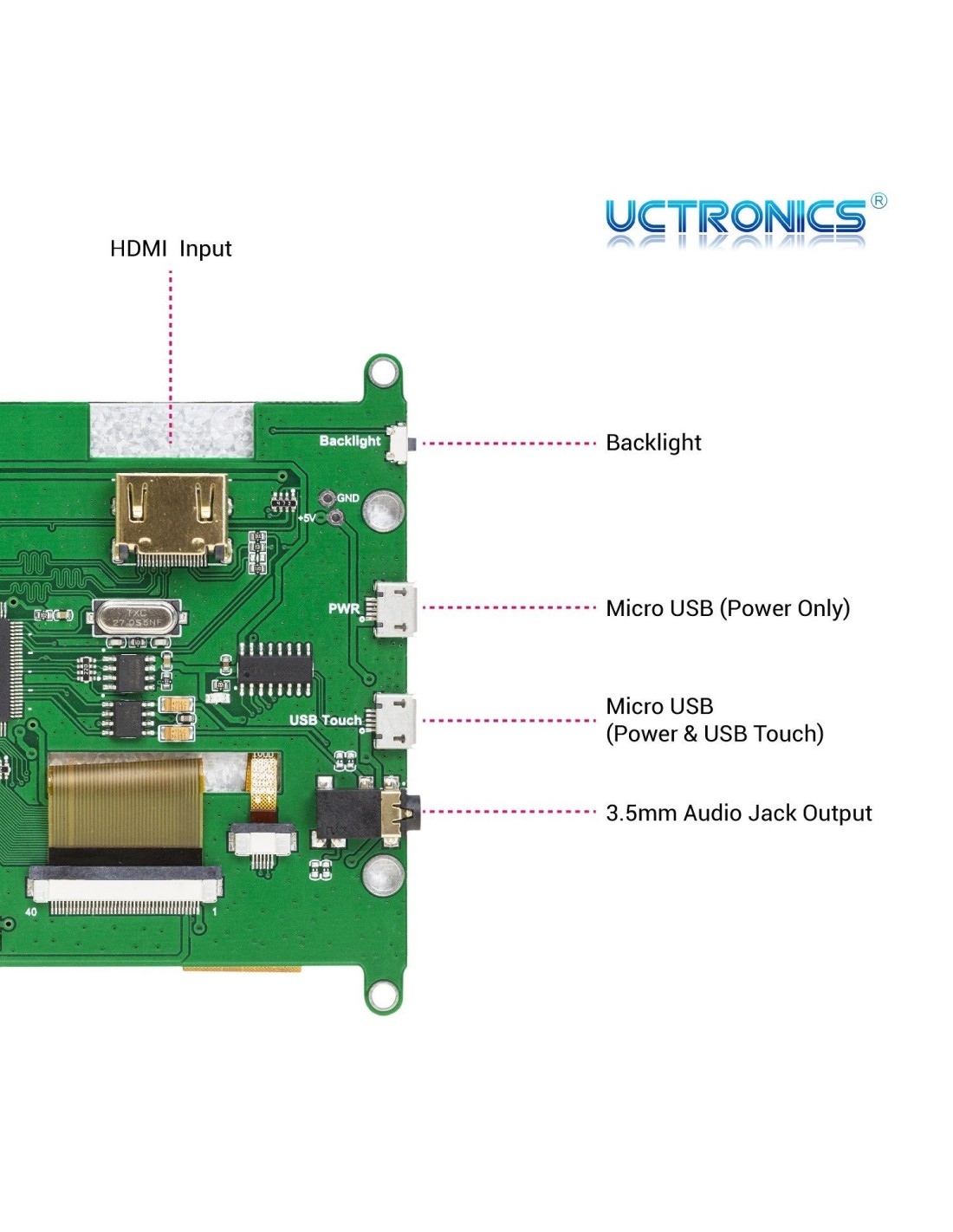

• Mode switch button for backlight ON/OFF Audio split output from HDMI

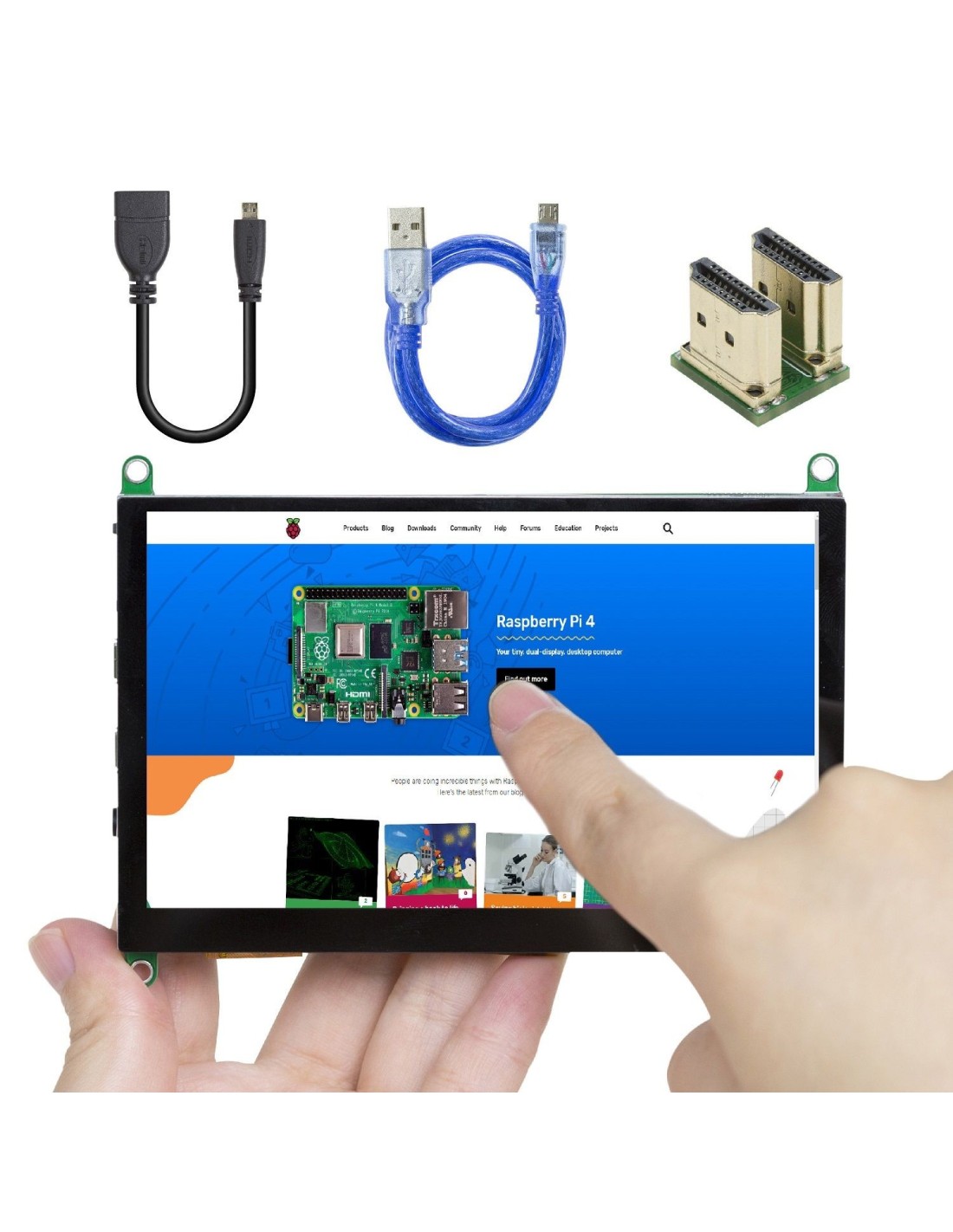

Package Includes:

• 1×5" LCD HDMI touchscreen
• 1×Micro HDMI male to HDMI female adapter cable
• 1×HDMI to HDMI converter
• 1×Micro USB cable

Additional Resources:

• User Guide – UCTRONICS 5 inch HDMI LCD Touchscreen
• 3D Drawing – UCTRONICS 5 inch HDMI LCD Touchscreen
• Mechanical Drawing – UCTRONICS 5 inch HDMI LCD Touchscreen
• Blog – UCTRONICS 5 inch HDMI LCD Touchscreen
