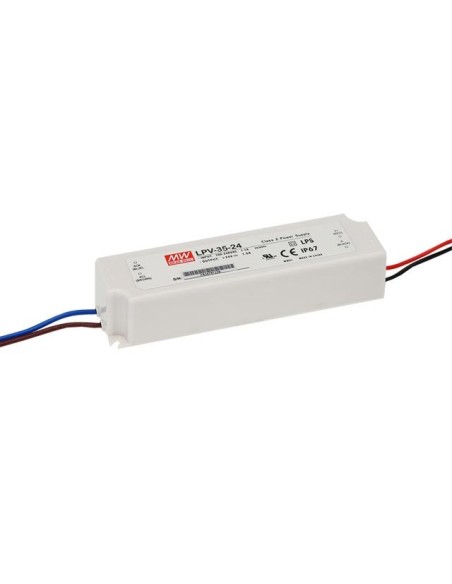

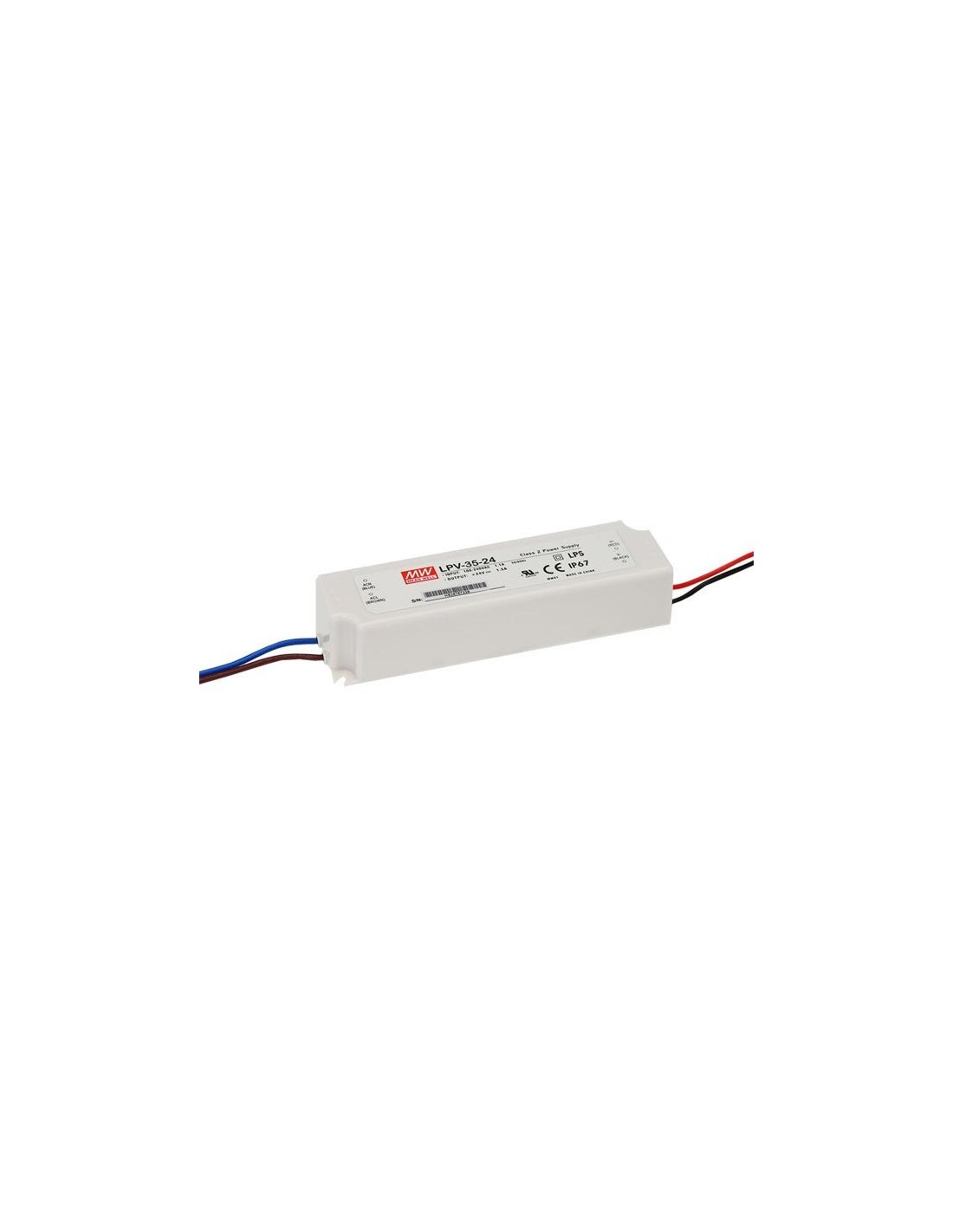

FUENTE ESTANCA 24V 1.5A IP-67

Name: FUENTE ESTANCA 24V 1.5A IP-67
Brand: Diotronic
SKU: LPV-35-24
Price: 15.13 EUR
Availability: InStock

LPV-35-24

15,13 €

Impuestos incluidos

Compra Segura

Todos los datos de compra son encriptados y protegidos

Política de entrega

Envío en 48/72 horas

Política de devolución

14 días de devolución

Description

LPV-35 Series are 35W AC/DC enclosed, non PFC design, switching power supplies. LPV-35 models offer constant voltage mode and high IP rating to protect the electronic components from dust and moisture, making suitable for use in harsh locations. LPV-35 Series possesses high efficiency and can operate between -30°C ~ +75°C using only free air convection. To protect the unit from sudden high surge for unstable AC line, LPV-35 can withstand 300VAC input surge for 5 seconds.

Specification

Input Voltage	90 ~ 264Vac
Input Frequency	47 ~ 63Hz
Input Current	1.1A/115Vac 0.7A/230Vac
Inrush Current	30A/115Vac 60A/230Vac, cold start
Leakage Current	0.25mA/ 240Vac
Line Regulation	Â±1.0%
Set Up, Rise Time	500ms, 20ms / 230Vac 500ms, 20ms / 115Vac at full load
Hold Up Time	50ms/230Vac 16ms/115Vac at full load
Over Current Protection	110 ~ 150% rated output power
	Hiccup mode, recovers automatically after fault condition is removed
Over Voltage Protection	Shut down o/p voltage, re-power on to recover
Working Temperature	-30°C~ +75°C (Refer to output load derating curve)
Working Humidity	20 ~ 90% RH non-condensing
Storage Temperature, Humidity	-40°C ~ +80°C, 10 ~ 95% RH
Temperature Coefficient	Â±0.03%/°C (0 ~ 50°C)
Vibration	10 ~ 500Hz, 2G 10min./1cycle, period for60min. each along X,Y, Z axes
Withstand Voltage	I/P-O/P:3KVAC
Isolation Resistance	I/P-O/P:>100M Ohms/500VDC 25°C 70%RH
Safety Standards	UL1310 Class 2, CAN/CSAC22.2 No. 223-M91, IP67 approved, design refer to TUV EN60950-1, EN61347-2-13
EMC	Compliance to EN55022 (CISPR22) Class B; EN61000-3-2,-3; ENV50204;
	EN61000-4-2,3,4,5,6,8,11; EN55024, light industry level, criteria A
MTBF	743.5Khrs min. MIL-HDBK-217F (25°C)
Dimensions	148 x 40 x 30mm
