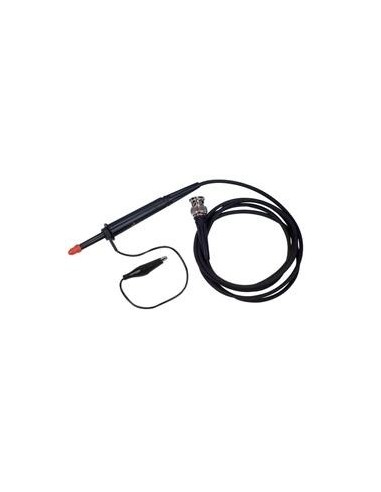

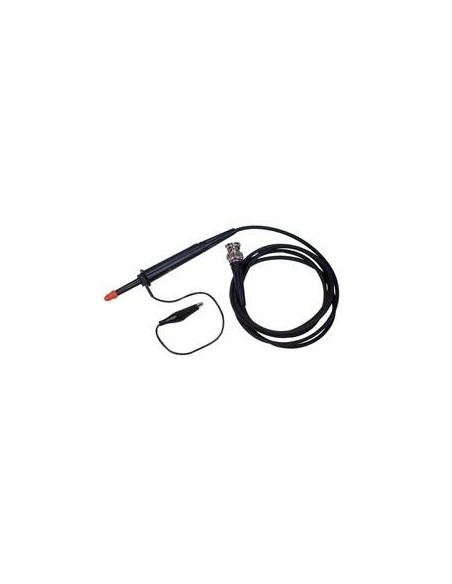

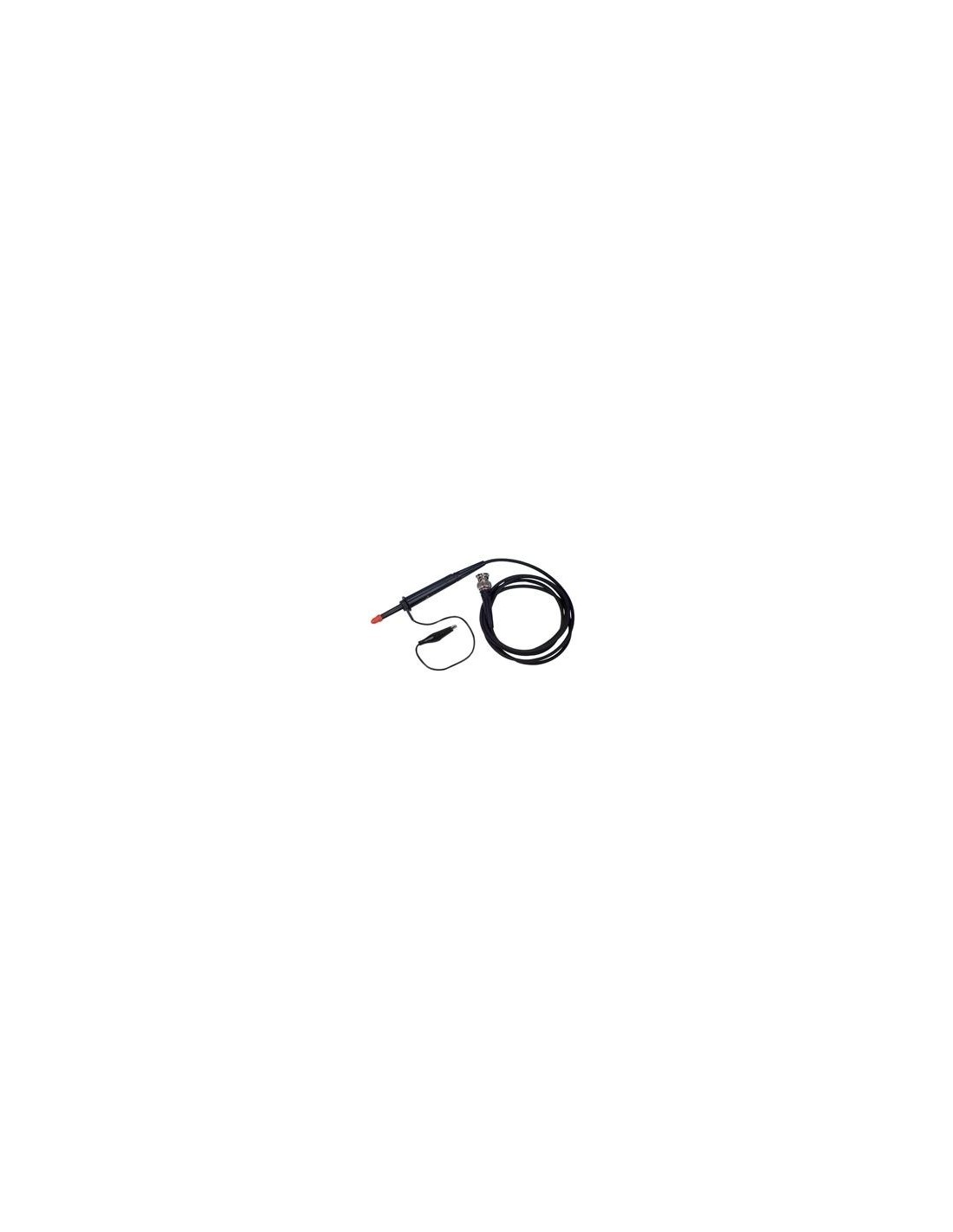

SONDA 1-1 1-10 60MHZ

Características:

The HP-2060 is a high-quality passive oscilloscope probe for use with scopes up to 60MHz. The probe is suited to equipment with an input impedance of 1MΩ shunted by 25pF. However, it is possible to compensate for equipment with an input capacitance in the range 10-35pF. The probe also features a switchable attenuator with X1 and X10 settings as well as a 1.4m flexible screened cable. The probe head can be detached from the cable assembly by unplugging the push-fit BNC connector. Compensation adjustment is available so that the probe does not distort sampled waveforms. Simply apply a 1kHz square waveform to the probe tip and adjust the recessed trimmer concealed in the probe head.
