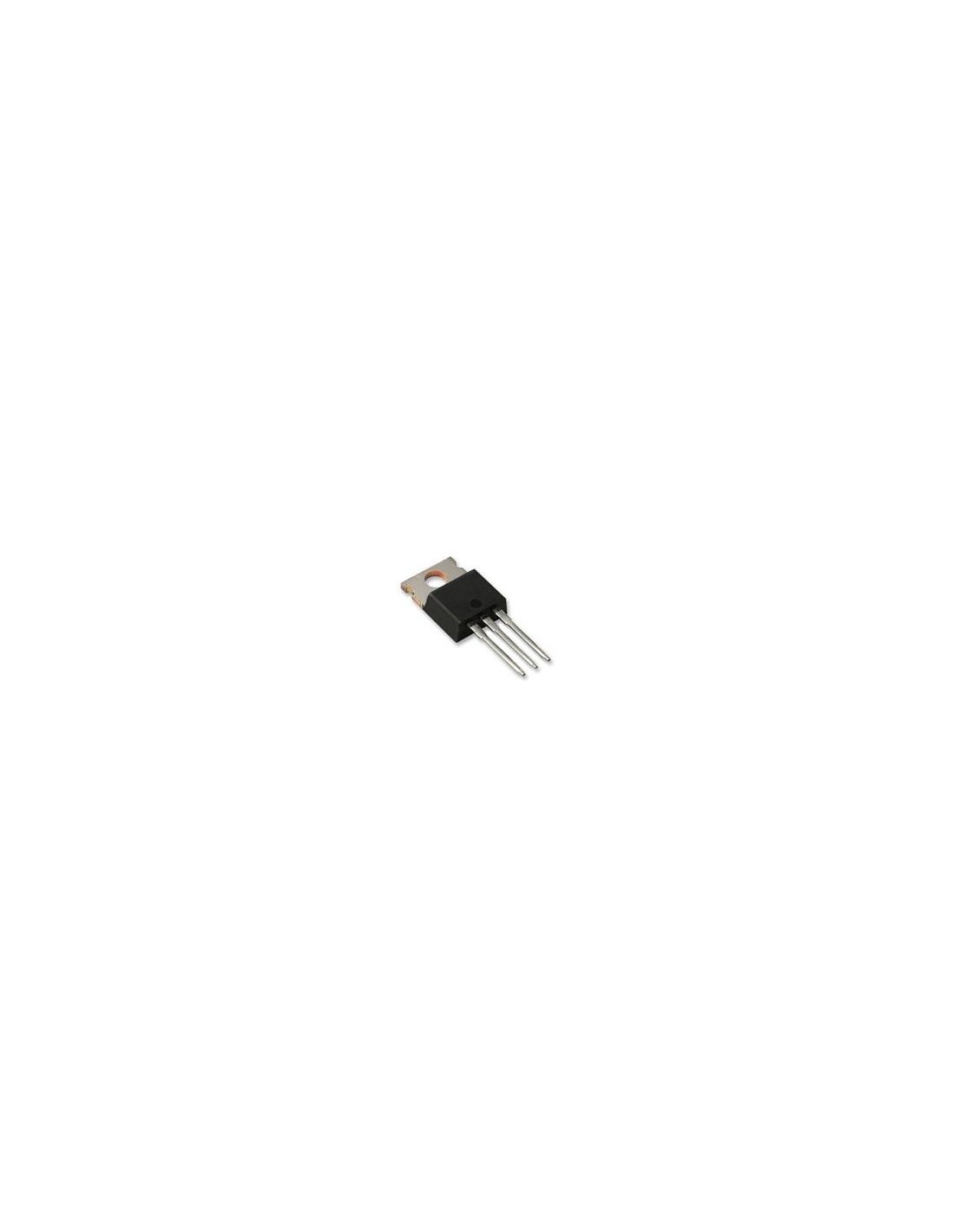

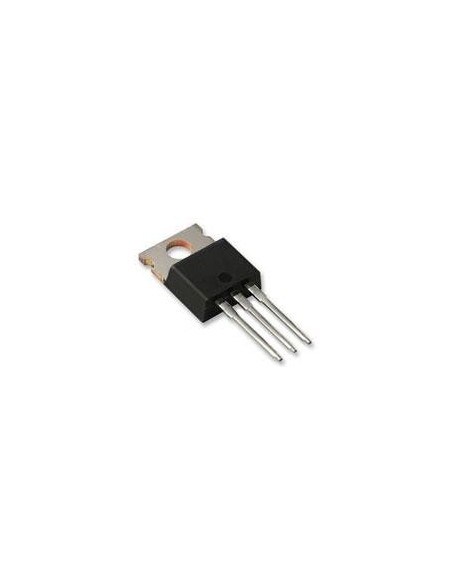

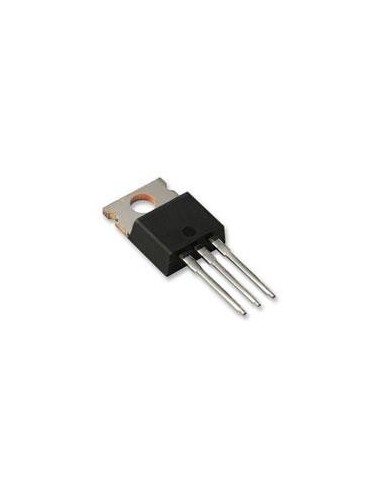

TRANSISTOR MOSFET P -55V -74A 0.02Ω



MOSFET, P, -55V, -74A, TO-220
Polaridad del transistor: Canal P
Continuous Drain Current Id: 64A
Drain Source Voltage Vds: 55V
On Resistance Rds(on): 20Mohm
Rds(on) Test Voltage Vgs: -10V
Threshold Voltage Vgs Typ: -4V
Power Dissipation Pd: 150W
Transistor Case Style: TO-220AB
Corriente, ID máx.: -74A
Current Temperature: 25°C
Full Power Rating Temperature: 25°C
Junction to Case Thermal Resistance A: 0.75°C/W
Lead Spacing: 2.54mm
N.° of Transistors: 1
Package / Case: TO-220AB
Configuración de pines: A
Formato de pin: 1 g
Power Dissipation Pd: 150W
Power Dissipation Pd: 150W
Pulse Current Idm: 260A
Voltage Vds: 55V
Voltage Vds Typ: -55V
Voltage Vgs Max: -4V
Voltage Vgs Rds on Measurement: -10V
