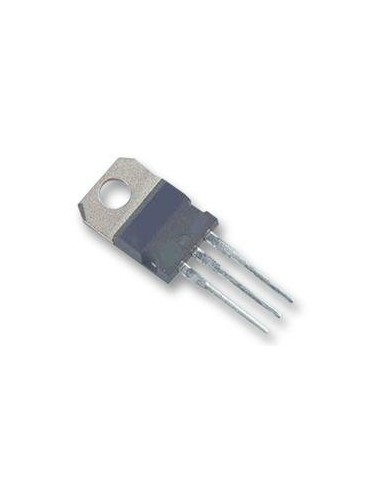

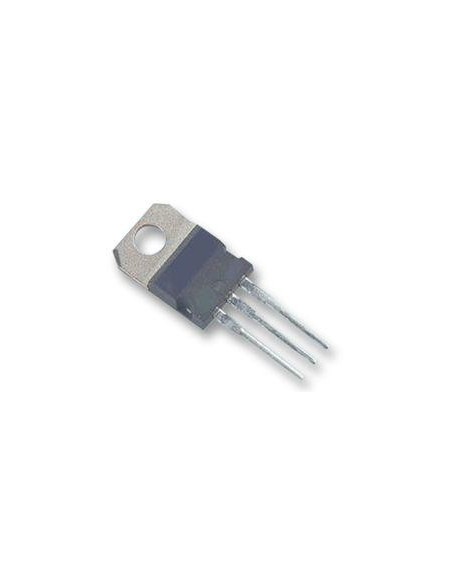

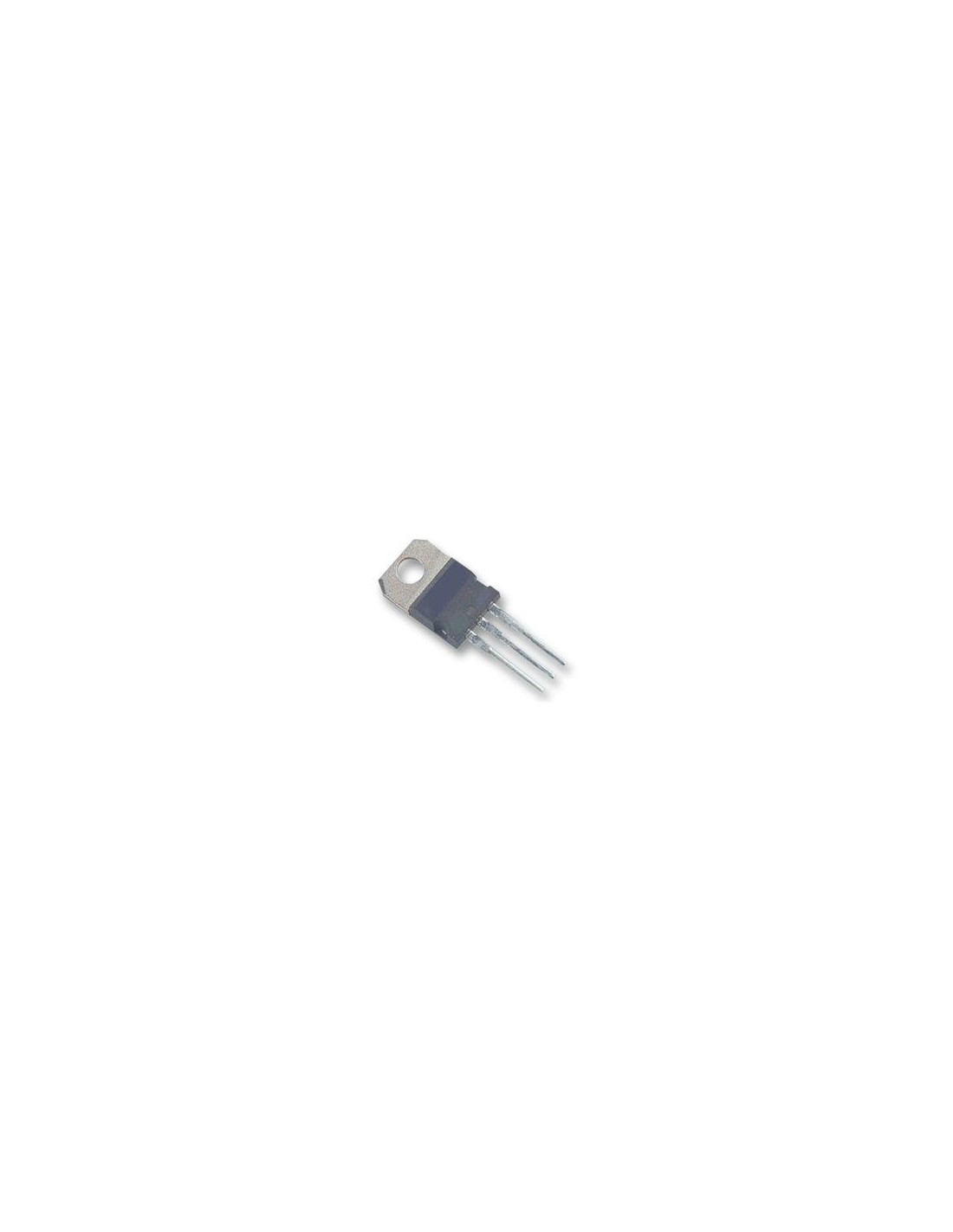

E TRIAC 12A 600V 25MA TO220

0,93 €
Impuestos incluidos

Compra Segura

Todos los datos de compra son encriptados y protegidos

Política de entrega

Envío en 48/72 horas

Política de devolución

14 días de devolución

TRIAC 12A 600V TO-220

Description

  • TRIAC, 12A, 600V, TO-220
  • Peak Repetitive Off-State Voltage, Vdrm:600V
  • Current Igt:70mA
  • RMS Current It:12A
  • Current Itsm @ 50Hz:95A
  • Holding Current:30mA
  • Voltage Vgt:1.5V
  • Peak Gate Power Pgm:5W
  • Operating Temperature Range:-40°C to +150°C
  • No. of Pins:3
  • SVHC:No SVHC
  • Case Style:TO-220
  • Current Itsm:95A
  • Current Itsm @ 60Hz:105A
  • Current t2+g-:35mA
  • Current t2-g+:70mA
  • Current t2-g-:35mA
  • Device Marking:BT138-600
  • Gate Trigger Current, Igt, (Q1), t2+g+:35mA
  • Termination Type:Through Hole
  • Thyristor/Triac Type:Triac
  • Voltage Vrrm:600V

BT138/600
