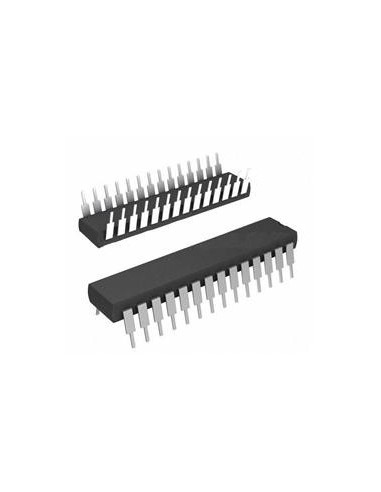

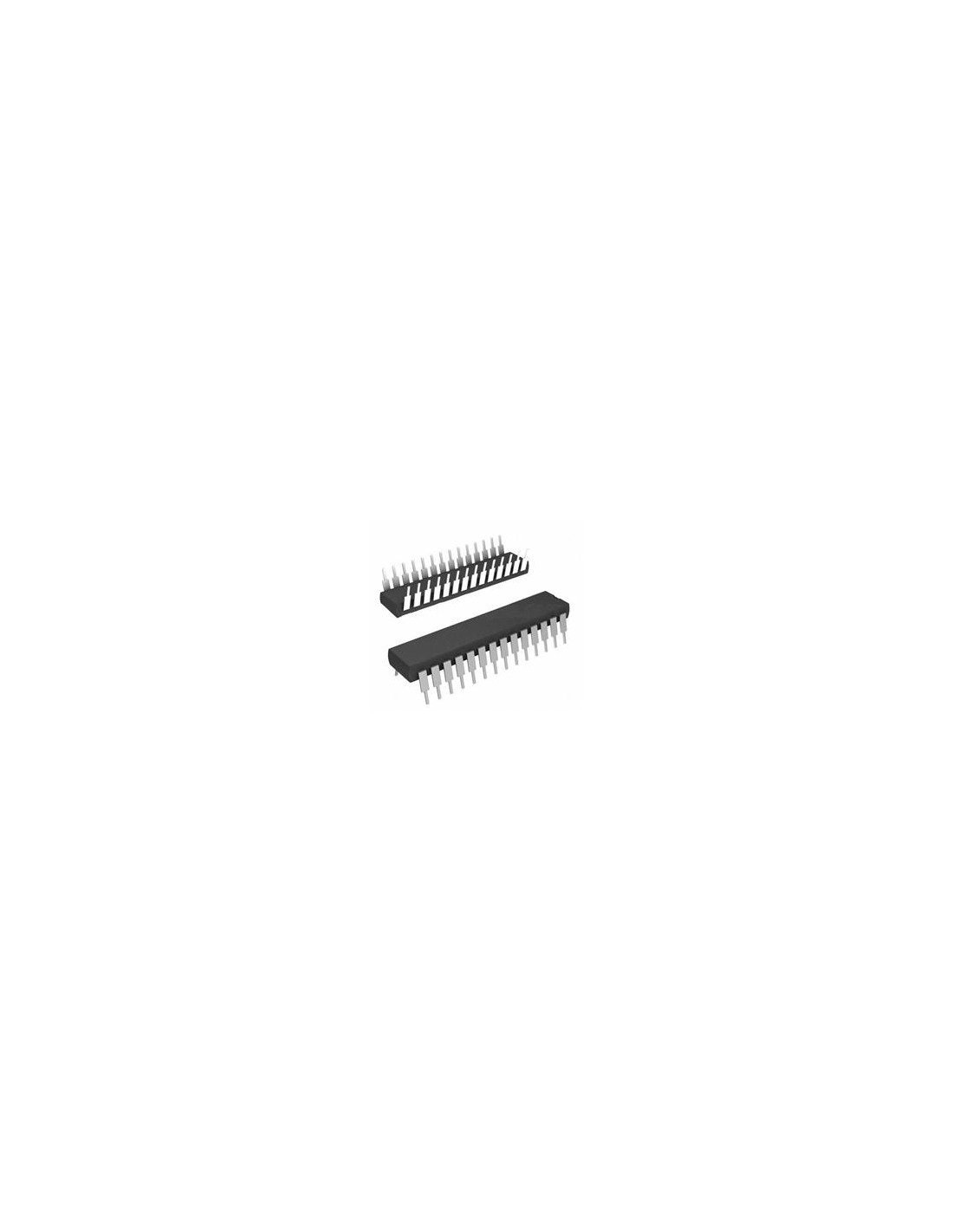

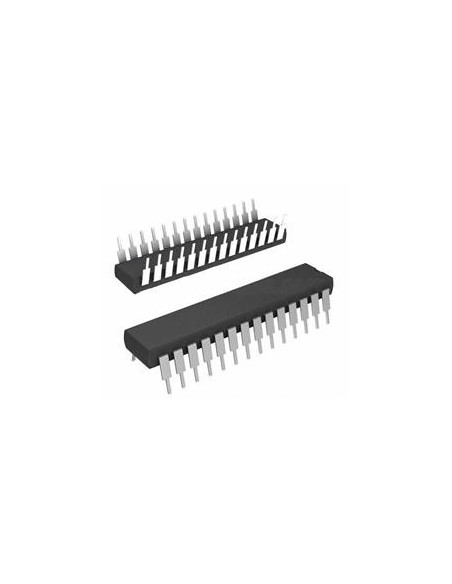

I/SP MCU 8-BITS CMOS FLASH

Special Microcontroller Features:

• Precision Internal Oscillator: - Factory calibrated to ±1% - Software selectable frequency range of 8 MHz to 32 kHz - Software tunable - Two-Speed Start-Up mode - Fail-safe clock monitoring for critical applications - Clock mode switching during operation for low-power operation
• Power-Saving Sleep mode
• Power-on Reset (POR)
• Selectable Brown-out Reset (BOR) voltage
• Extended Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
• In-Circuit Serial Programming⢠(ICSPâ¢) via two pins
• In-Circuit Debug (ICD) via two pins
• High-endurance Flash/EEPROM cell: - 100,000 erase/write cycle enhanced Flash program memory, typical - 1,000,000 erase/write cycle data EEPROM memory, typical - Data EEPROM retention > 40 years
• Self-reprogrammable under software control
• Programmable code protection
• Peripheral Features: Device Features: - 1 input only pin - 25 I/O - High sink/source current 25 mA - Interrupt-on-pin change option
• Timers: - TMR0: 8-bit timer/counter with 8-bit prescaler - TMR1 enhanced: 16-bit timer/counter with prescaler, External Gate Input mode and dedicated low-power 32 kHz oscillator - TMR2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
• Capture/Compare/PWM (CCP) module
• Enhanced Capture/Compare/PWM (ECCP) module with auto-shutdown and PWM steering
• Master Synchronous Serial Port (MSSP) module SPI⢠mode, I2C⢠mode with address mask capability
• Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) module: - Supports RS-485, RS-232 and LIN compatibility - Auto-Baud Detect - Auto-wake-up on Start bit
• Ultra Low-Power Wake-up (ULPWU) Analog Features:
• 10-bit 11 channel Analog-to-Digital (A/D) Converter
• 2 Analog Comparator modules with: - Programmable on-chip Voltage Reference (CVREF) module (% of VDD) - Fixed 0.6 Vref - Comparator inputs and outputs externally accessible - SR Latch mode
