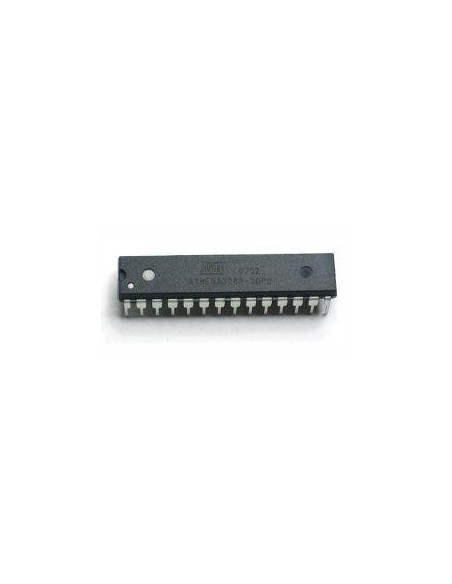

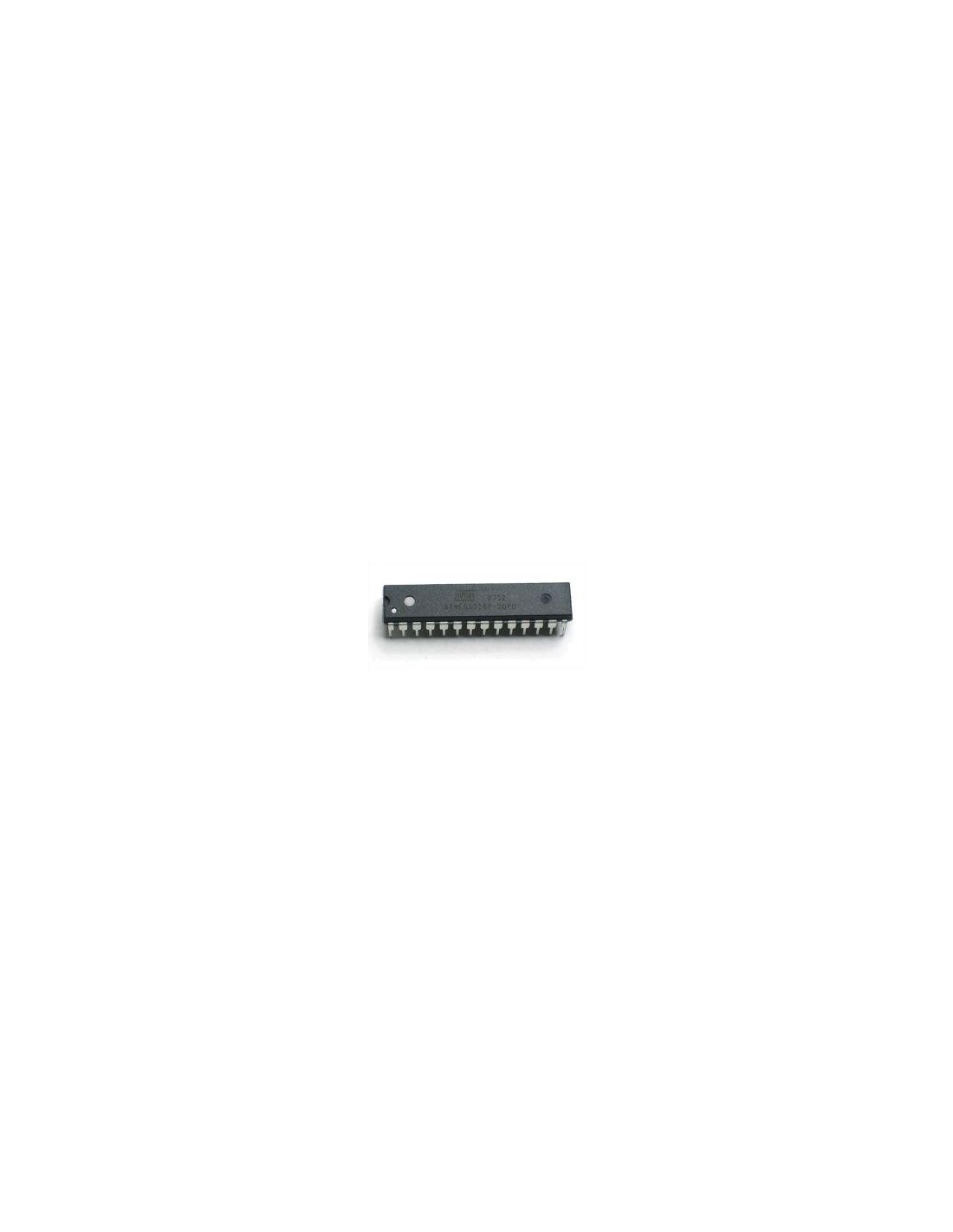

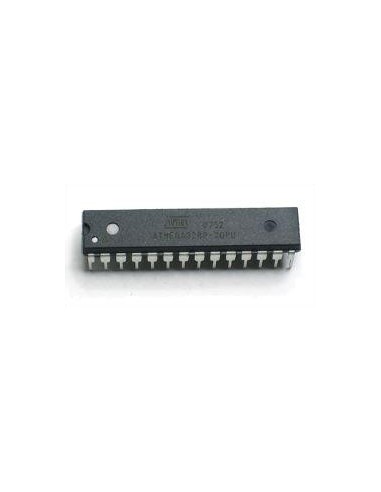

MCU AVR 8 BIT 32K FLASH 20MHZ

The high-performance Atmel picoPower 8-bit AVR RISC-based microcontroller combines 32KB ISP flash memory with read-while-write capabilities, 1024B EEPROM, 2KB SRAM, 23 general purpose I/O lines, 32 general purpose working registers, three flexible timer/counters with compare modes, internal and external interrupts, serial programmable USART, a byte-oriented 2-wire serial interface, SPI serial port, a 6-channel 10-bit A/D converter (8-channels in TQFP and QFN/MLF packages), programmable watchdog timer with internal oscillator, and five software selectable power saving modes. The device operates between 1.8-5.5 volts. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.

Features

⢠High Performance, Low Power AVR® 8-Bit Microcontroller
⢠Advanced RISC Architecture
â 131 Powerful Instructions â Most Single Clock Cycle Execution
â 32 x 8 General Purpose Working Registers
â Fully Static Operation
â Up to 20 MIPS Throughput at 20 MHz
â On-chip 2-cycle Multiplier
⢠High Endurance Non-volatile Memory Segments
â 4/8/16/32K Bytes of In-System Self-Programmable Flash progam memory(ATmega48PA/88PA/168PA/328P)
 â 256/512/512/1K Bytes EEPROM (ATmega48PA/88PA/168PA/328P)
â 512/1K/1K/2K Bytes Internal SRAM (ATmega48PA/88PA/168PA/328P)
â Write/Erase Cycles: 10,000 Flash/100,000 EEPROM
â Data retention: 20 years at 85°C/100 years at 25°C
â Optional Boot Code Section with Independent Lock Bits
    In-System Programming by On-chip Boot Program
    True Read-While-Write Operation
â Programming Lock for Software Security
⢠Peripheral Features
â Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode
â One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
â Real Time Counter with Separate Oscillator
â Six PWM Channels
â 8-channel 10-bit ADC in TQFP and QFN/MLF package
   Temperature Measurement
â 6-channel 10-bit ADC in PDIP Package
   Temperature Measurement
â Programmable Serial USART
â Master/Slave SPI Serial Interface
â Byte-oriented 2-wire Serial Interface (Philips I2C compatible)
â Programmable Watchdog Timer with Separate On-chip Oscillator
â On-chip Analog Comparator
â Interrupt and Wake-up on Pin Change
⢠Special Microcontroller Features
â Power-on Reset and Programmable Brown-out Detection
â Internal Calibrated Oscillator
â External and Internal Interrupt Sources
â Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby, and Extended Standby
⢠I/O and Packages
â 23 Programmable I/O Lines
â 28-pin PDIP, 32-lead TQFP, 28-pad QFN/MLF and 32-pad QFN/MLF
⢠Operating Voltage:
â 1.8 - 5.5V for ATmega48PA/88PA/168PA/328P
⢠Temperature Range:
â -40°C to 85°C
⢠Speed Grade:
â 0 - 20 MHz @ 1.8 - 5.5V
⢠Low Power Consumption at 1 MHz, 1.8V, 25°C for ATmega48PA/88PA/168PA/328P:
â Active Mode: 0.2 mA
â Power-down Mode: 0.1 μA
â Power-save Mode: 0.75 μA (Including 32 kHz RTC)
