DRIVER MOTOR PASO A PASO A4988 2A 8-35V

Name: DRIVER MOTOR PASO A PASO A4988 2A 8-35V
Brand: Diotronic
SKU: MDIO3902
Price: 6.03 EUR
Availability: InStock

MDIO3902

6,03 €

Impuestos incluidos

Compra Segura

Todos los datos de compra son encriptados y protegidos

Política de entrega

Envío en 48/72 horas

Política de devolución

14 días de devolución

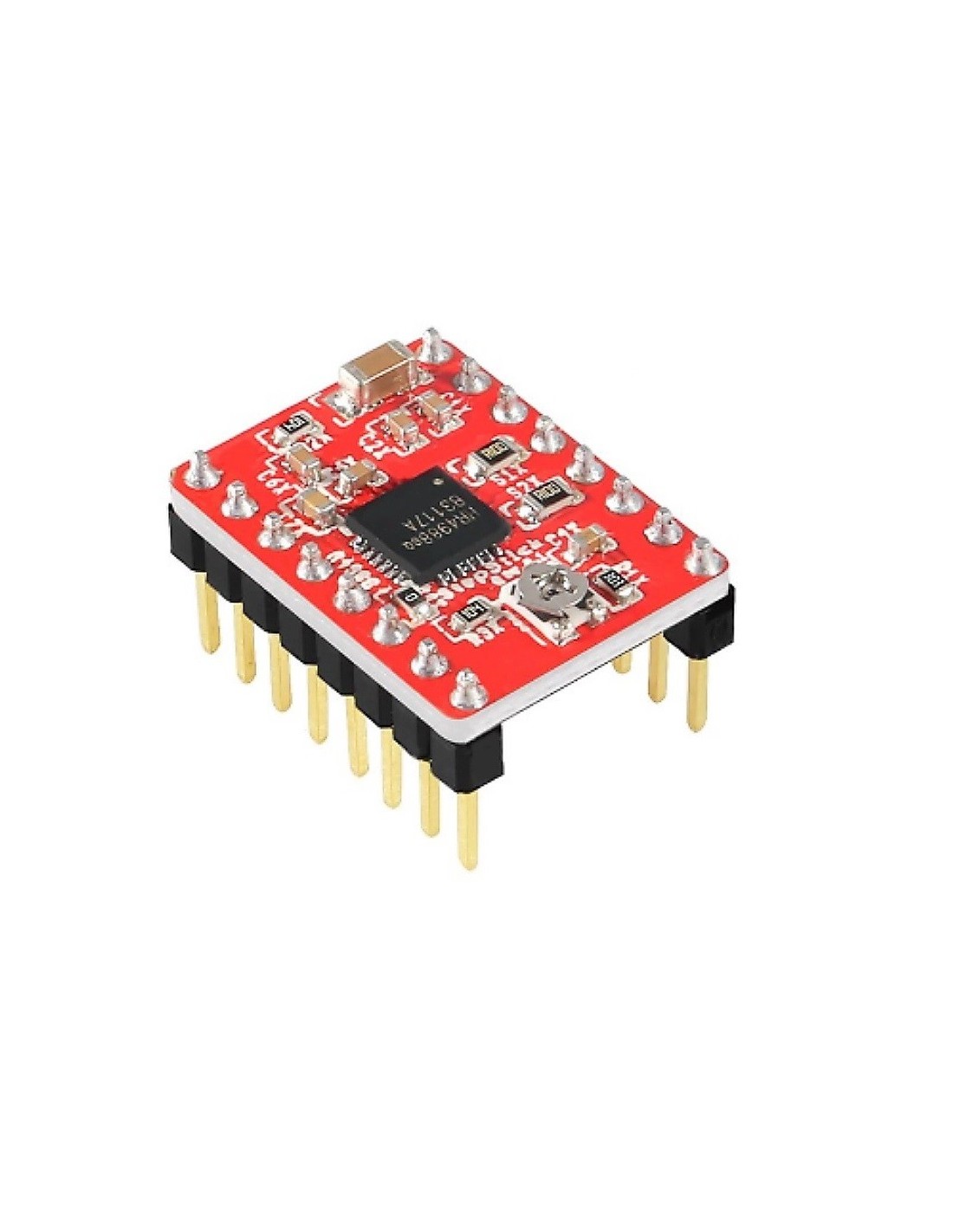

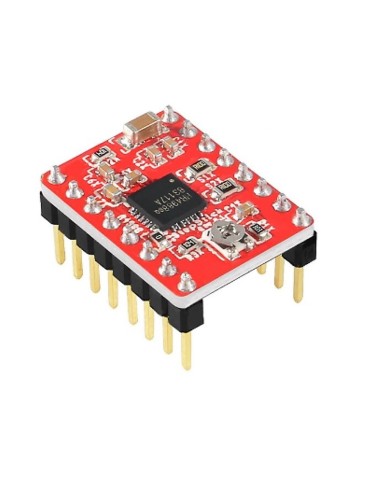

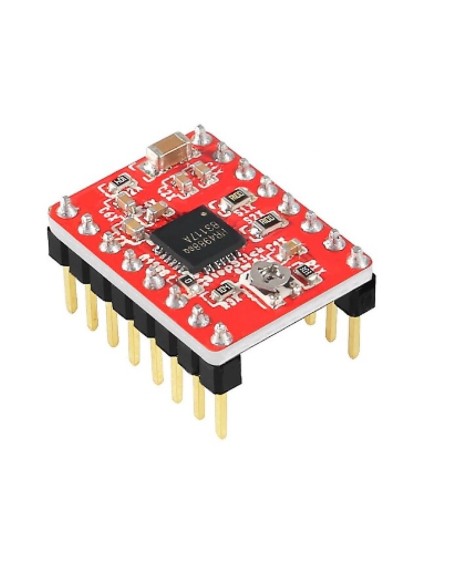

A4988 Stepper Motor Driver Carrier - StepStick RAMPSTEP

Features:

Simple step and direction control interface
Five different step resolutions:full-step, half-step, quarter-step, eighth-step, and sixteenth-step
Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor's rated voltage to achieve higher step rates
Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
Over-temperature thermal shutdown, under-voltage lockout, and crossover-current protection
Short-to-ground and shorted-load protection

Description

This product is a carrier board or breakout board for Allegro's A4988 DMOS Microstepping Driver with Translator and Overcurrent Protection; we therefore recommend careful reading of the A4988 datasheet (380k pdf) before using this product. This stepper motor driver lets you control one bipolar stepper motor at up to 2 A output current per coil (see the Power Dissipation Considerations section below for more information).

The equivalent to A4983-board but offers overcurrent protection. If the boards get too hot, they will interrupt the current until it cools a bit. If the current is too high for the heat sinking, the motors will pulse as the current is interrupted and restored.

Detalles del producto

Referencia MDIO3902
