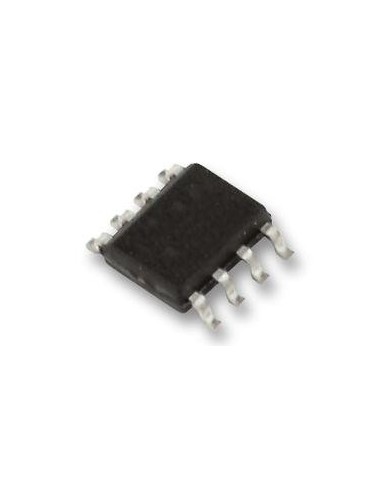

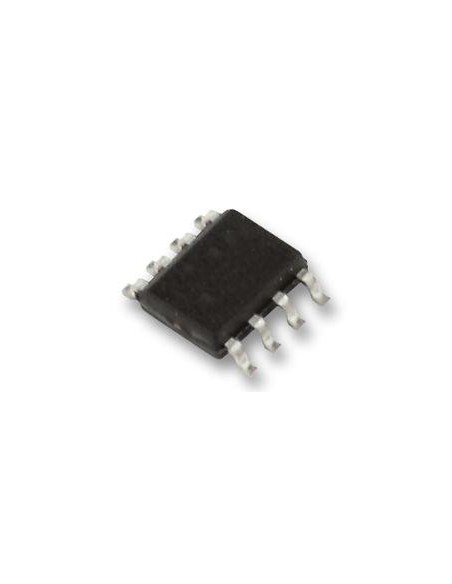

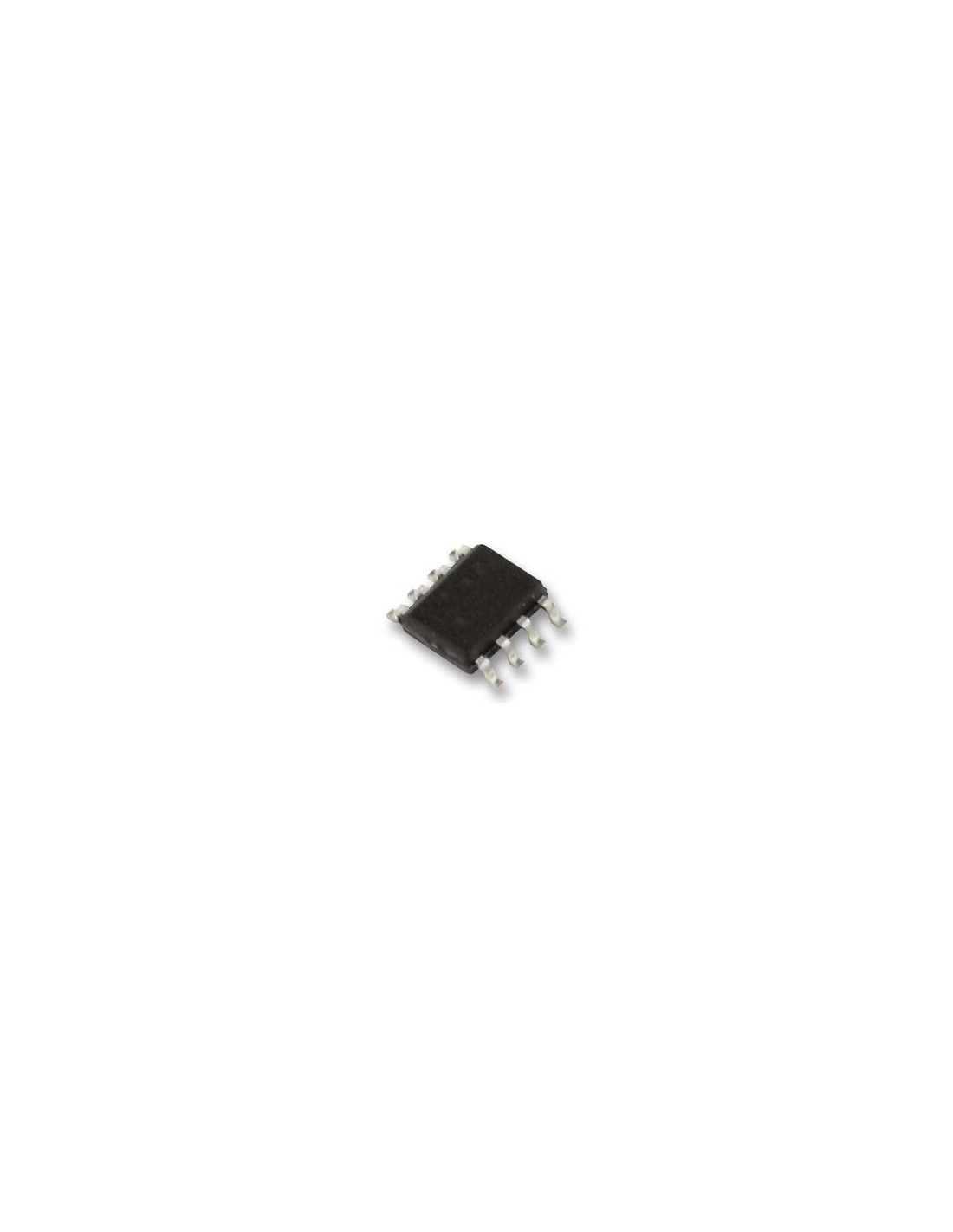

HIGH PERFORMANCE OP AMP SO8

OP AMP, COMPENSATED, SOIC8, 741

Características:

• No. of Amplifiers:1
• Op Amp Type:General Purpose
• Gain Bandwidth:1MHz
• Slew Rate:0.5V/µs
• Min Supply Voltage:-18V
• Max Supply Voltage:18V
• Termination Type:SMD
• Case Style:SOIC
• No. of Pins:8
• Operating Temperature Range:0°C to +70°C
• Amplifier IC Type:Operational
• Base Number:741
• Device Marking:UA741CD
• IC Generic Number:741
• IC Temperature Range:Commercial
• Logic Function Number:741
• Max Input Offset Voltage:7.5mV
• Max Operating Temperature:70°C
• Max Supply Current:2.8mA
• Min Temperature Operating:0°C
• Operational Amplifier Features:Compensated amplifier
• Supply Voltage + Nom:15V
• Supply Voltage - Nom:-15V
